Introduction
If your speakers seem to be not in the best condition or broken entirely, use this guide to help change out your speakers. You will need a Phillips #0 screwdriver, a plastic opening tool, and tweezers.
Tools
-

                  -
            Place the device flat on its screen.
-
            Using the plastic opening tools, pry open the top segment of the tablet where the camera is located.
-
            Take the segment off and place it to the side.

-

-

                  -
            Disconnect the no-fuss ribbon cable connector.
-
            Remove the battery by gently lifting it out of the device.

-

-

                  -
            Gently lift up the black covered wire and place it on the side, so that it is not in the way of the procedure.

-

-

                  -

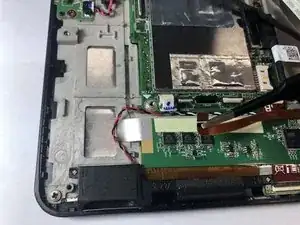

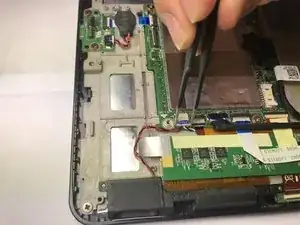

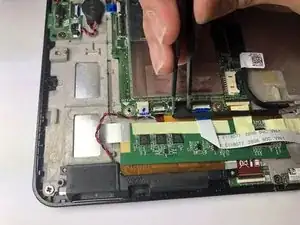

            Using the tweezers, carefully pull out the cable straight out of the no-fuss ribbon cable connector.

-

-

                  -

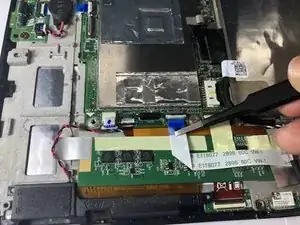

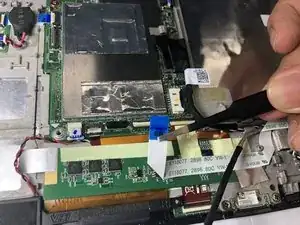

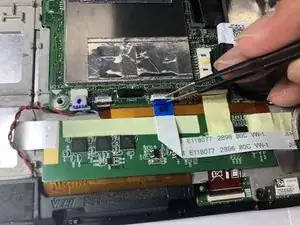

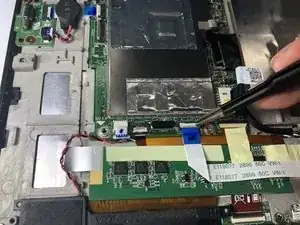

            When dealing with a zero insertion force connector, the best way it to carefully use a tweezer to flip up the white locking flap holding the blue-tipped ribbon cable.
-
            Then, gently remove the ribbon cable from the socket.

-

-

                  -

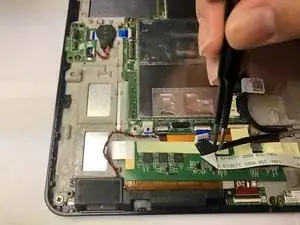

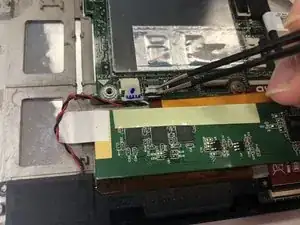

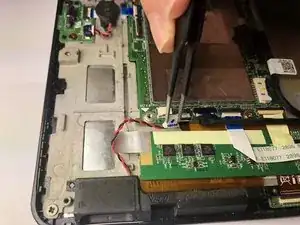

            When dealing with a zero insertion force connector, the best way it to carefully use a tweezer to flip up the white locking flap holding the blue tip wire.
-
            Then gently remove the wire from the socket.

-

-

                  -

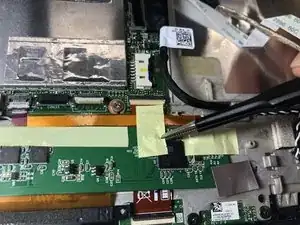

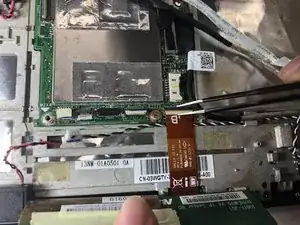

            Using the tweezers, carefully flip up the locking tab on the Zero Insertion Force connector.
-

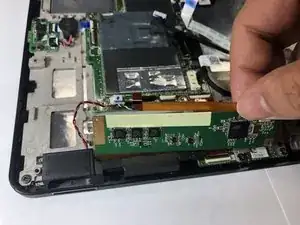

            Then, gently disconnect the orange ribbon cable.

-

-

                  -

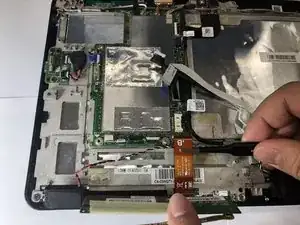

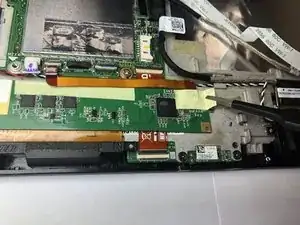

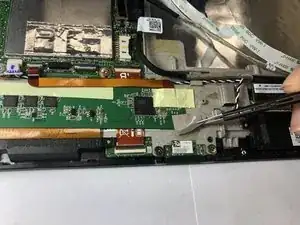

            When dealing with a zero insertion force connector, the best way it to carefully use a tweezer to flip up the white locking flap holding the orange ribbon cable.
-

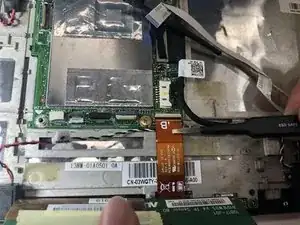

            Once the white tab is lifted, use the tweezer to carefully pull out the orange ribbon cable.

-

-

                  -

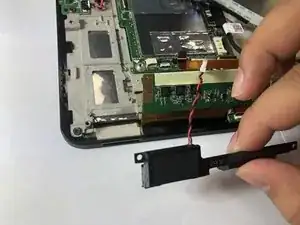

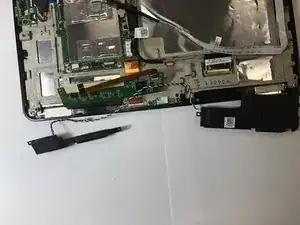

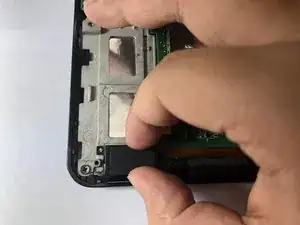

            Using your fingers, wiggle the speaker until it comes free from the device. Carefully remove it from the tablet.

-

-

                  -
            Using your fingers, wiggle the other speaker until it comes free. Carefully remove it from the tablet.

-

To reassemble your device, follow these instructions in reverse order.
