Dell XPS 720 H2C Sound Card Replacement

Written By: G B
  • Comments: 1
Dell XPS 720 H2C Sound Card Replacement

Difficulty

Easy

Steps

6

Time Required

5 minutes

Introduction

The sound card is responsible for most of the audio functions on a computer. This guide will help users remove and replace the sound card in the Dell XPS 720 H2C.

  1. DxgTV2316KSyplnC
    DxgTV2316KSyplnC
    xxF4cwVdeHYjsKD5

    • Remove the cover panel on the side of the computer by pulling out the latch on the back panel and pulling the panel downwards towards the ground.

    What if latch is broken?

    cnoriel -

  2. gnLybEyftAh4yACo
    gnLybEyftAh4yACo
    mtmaURaBArTkJwHP

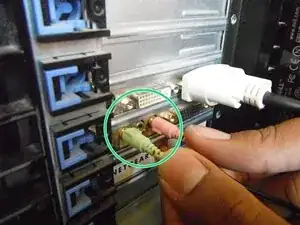

    • Before handling the inside of the computer, ensure that all wires are disconnected from the audio ports along the back panel.

    • The sound card is located towards the bottom of the computer, near the righthand side (see red outline).

  3. hMv3LEi1TGuA3yjV
    hMv3LEi1TGuA3yjV
    5RqUrK5DhrWOUOQW
    X1eHKuVaAUlB5IgU

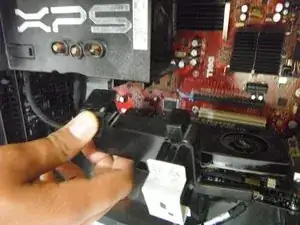

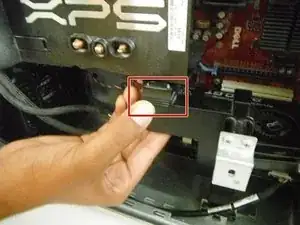

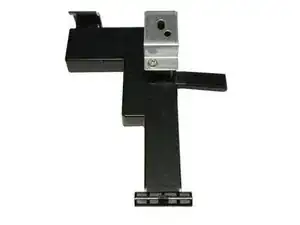

    • To remove the support below the processor: press down on the latch at the top of the support, then pull the support outwards, towards yourself.

  4. bvl6NdyiLpnrLIBS

    • To unplug the wire that connects the sound card to the motherboard: grasp the wire tightly and pull it outwards, towards yourself.

    • The wire may appear to be stuck. Keep increasing your pulling force until the wire unplugs. It will not break.

  5. SISsiftGiHNHoDG4

    • To release the sound card from the motherboard casing: find the blue tab that is the third from the bottom (fifth from the top), and press down and to the right on the tab.

  6. mGOBU4dYYb2LqW2Q
    mGOBU4dYYb2LqW2Q
    wDr3qZArCjUVvXOB

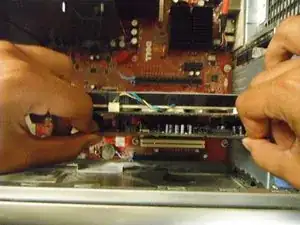

    • To remove the sound card from the motherboard: gently grasp the sound card and pull directly outward, towards yourself.

    • Again, this may appear to be stuck in place. Slightly increase your pulling force until the card releases from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
