Desktop PC Graphics Card Replacement

Written By: David Lennon
  • Comments: 7
Desktop PC Graphics Card Replacement

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

A computer graphics card allows a computer to plug into a monitor and be displayed. Graphics cards are vital components for computers. Also, replacing a graphics card can help your computer run more quickly and smoothly.

  1. CWBYaixPHl3eX1EL

    • Unplug the computer from the power supply before any maintenance or disassembly.

    • Remove the two Phillips #2 head 5mm screws from the back side of the computer case. You only need to remove the screws that hold down the panel.

    • These screws can usually be removed by hand.

    • Be sure to wear an anti-static bracelet or use an anti-static mat to ensure important components are not damaged by static electricity.

    This depends on the model of system. Some systems have a lever/latch to pull to release the cover. Many Dell and HP models use latches to open the covers (no tools required to open the system). Some systems need a screwdriver to remove the screws. Some are Phillips screws, others may be Torx.

    Dave Ellefson -

    This is correct.

    DistroHopper39B -

  2. Mdre2vAZvC5PPqhi
    Mdre2vAZvC5PPqhi
    DtjtypQfCYpHFQsk

    • Next, remove the side panel of the computer case to allow access into the computer. Slide the panel towards the back of the computer and lift it up to remove.

    • If there is a fan mounted on the side panel, make sure to unplug the cable before fully removing the panel.

  3. OCB1QuNC4rSWDbsy

    • Remove the Phillips #2 head, 5mm screw holding the graphics card in place.

    • Make sure that you have grounded yourself so that upon removal of the graphics card you do not accidentally shock the circuit board and damage it.

  4. EiS44ghbfWhabAWV
    EiS44ghbfWhabAWV
    GXGHvRjHiBtPvEwg

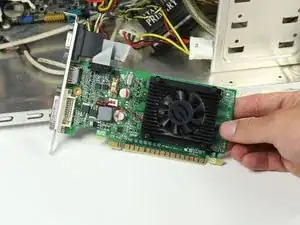

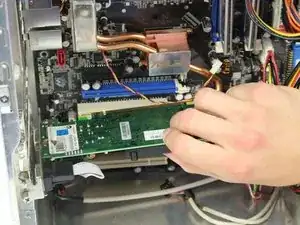

    • Press the latch on the side of the connector area to unlock the graphics card, and carefully slide the graphics card out from its slot in the computer.

    • A good technique is to lay the computer onto it side, push the latch down and lift the graphics card out.

    Sur les ports récents, (PCIE) il y a d’abord l’encoche à éloigner pour permettre le retrait de carte graphique.

    benam -

    most gpu's have screws so you MUST take them out first or the pins on the gpu and pci slot will crack.

    Dovber Levertov -

Conclusion

To reassemble your device, follow these instructions in reverse order.
