Disassembling Canon PowerShot SD1100 IS Front and Rear Cover

Written By: Tyler Grossheim
  • Comments: 3
Disassembling Canon PowerShot SD1100 IS Front and Rear Cover

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

Use this guide to remove the front and rear cover of the Canon PowerShot SD1100 IS.

  1. bpnLB1JBgBWLLOfn
    bpnLB1JBgBWLLOfn
    VcUaFQBOKNUx4ekb

    • Remove wrist strap and battery.

  2. JH6SAQOc2XCPR2pq
    JH6SAQOc2XCPR2pq
    IUEaEEVKN3RqTLvq
    BfhHKnNhmJcU3Zyr

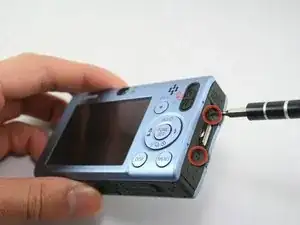

    • Remove 2 screws from each side of the camera (4 total, 0.102 in).

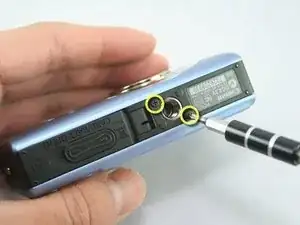

    • Remove 2 screws from the bottom on the camera (0.138 in).

    • Do not mix the 4 side screws with the 2 bottoms ones; they are different sizes.

  3. kkNl6BGy1WARhvEb
    kkNl6BGy1WARhvEb
    VaOyHP1Ai4TxbUcB
    YhjjIRAhftly2iV2

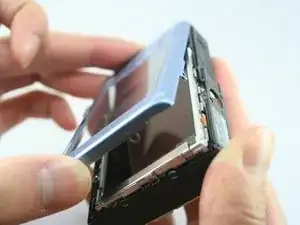

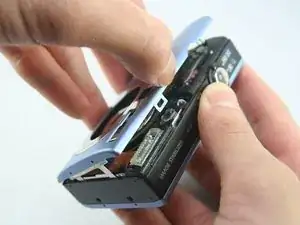

    • Gently pull off the front cover.

    • The plate on the side should come off.

    • Gently pull off the back cover.

    I had to remove the screw on the bottom mounting plate to get the front case cover off. The screw closest to the middle. The front plate does have a hole here that the screw goes through

    remove both screws - the second holds the back plate

    Michael Chalifoux -

  4. DIuc6Nfd6E1AMGCw

    • The cases should now be removed.

    This can be a bit tricky when reassembling. All of the little tabs around the edge need to snap into their proper places, and there are three cover pieces to manage. Plus, you need to make sure that the camera/video/playback switch is properly engaged with its slider on the circuit board, otherwise you'll need to raise the back panel and reposition everything again.

    Craig Bonsignore -

    oh yes , i agree lol

    elbala80 -

Conclusion

To reassemble your device, follow these instructions in reverse order.
