Disassembling Motorola ES400

Written By: Jordan Wires
Published: 04/01/12
  • Comments: 1

Disassembling Motorola ES400

Published: 04/01/12

Teardown

Introduction

The Motorola ES400 is used mostly in harsh environments and is rated to military spec but can still be vulnerable to being damaged.

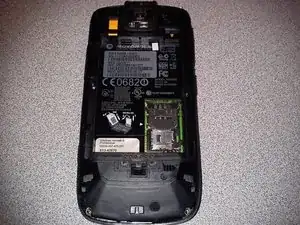

  1. tduIfRYRELWImuQV
    tduIfRYRELWImuQV
    MCPoSXu1RM2O5ZOl

    • Take the battery cover and battery out of the device and put the unit on its front.

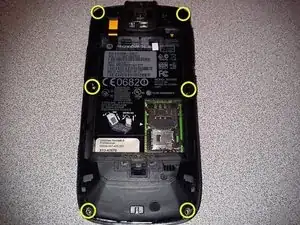

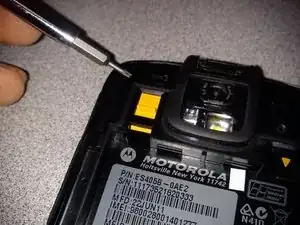

  2. OPebSAWTVuCP1gol
    OPebSAWTVuCP1gol
    5VQD1iJSG14KPGdM

    • Remove a total of 6 T5 torx screws

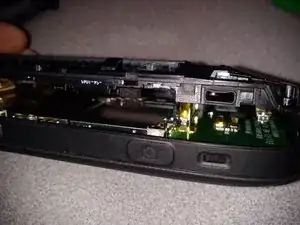

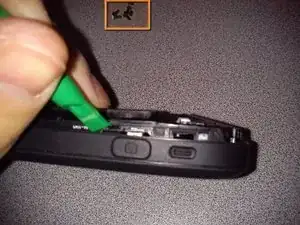

  3. C3wSMZMwOSiSoZjq
    C3wSMZMwOSiSoZjq
    oTaWIcWTuWU3UXXf
    POfQcjSLPUIsKFnk

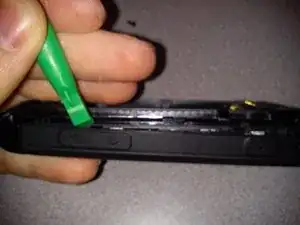

    • After all 6 screws have been removed, start by using a plastic pry tool to separate the back panel from the side frame.

    • Continue along the side near the volume buttons slowly seperating the back panel from the frame.

    • Once the back panel has been seperated from the frame slowly take it off, being careful not to break any plastic parts/clips.

    • Keep track of your screws.

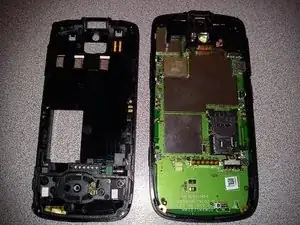

  4. Vo3eYZooLoeavyOZ

    • Remove the back panel and set it aside.

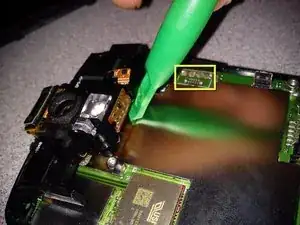

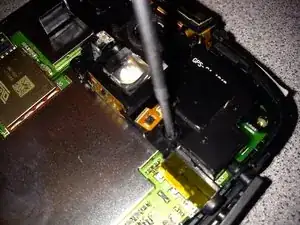

  5. nwAFiwJliJTWMvvp
    nwAFiwJliJTWMvvp
    W3VLWr5JJsCoOgeG
    SYVDMSKwEYN4okJS

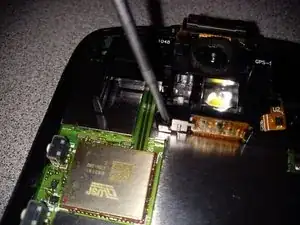

    • Unscrew the 2 Philips head (+) screws to remove the camera flash module.

    • This unit has a broken micro usb charging port.

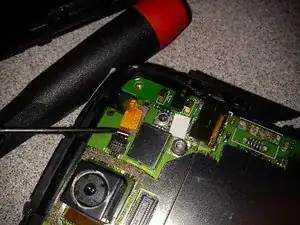

  6. yQPyMnFXTSyMbAdv

    • After the camera module has been removed pull up any tape covering the digitizer flex cable.

    • Flip up the plastic lever and then slowly nudge the flex cable out of the socket.

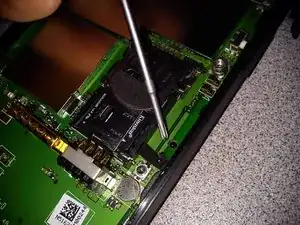

  7. Ve3E2pRapYYKcElb

    • Near the memory card slot on the right side carefully lift the logic board over the finger to release the logic board from the frame.

  8. FuX2oADBoNus5KTy

    • On the left side carefully lift the logic board over the finger to release the logic board from the frame.

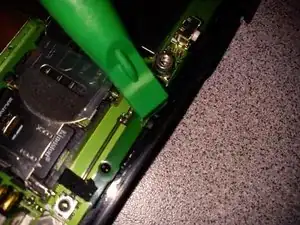

  9. S3U1ZrCulyKZSCXE

    • After all the fingers and clips have been released/removed, use a plastic prying tool to carefully pry the logic board out of the frame.

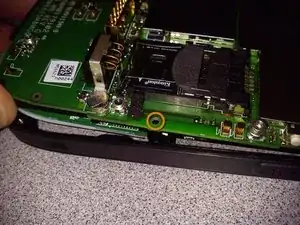

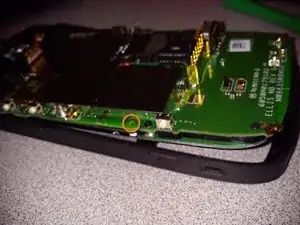

  10. kMHxLqNScDEtYMwW
    kMHxLqNScDEtYMwW
    qksIjKUATEkFGX6y

    • Slowly lift the logic board out of the frame starting at the bottom of the phone.

    • (Fingers are released shown in orange)

  11. ZM61mpghQRqbkNCL

    • Pry off metal cap to remove shielding to access LCD flex cable.

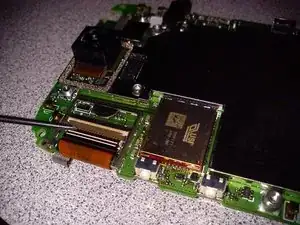

  12. oVLukGqexqAhWYUg
    oVLukGqexqAhWYUg
    vPr1Ht3K1uFKghhi

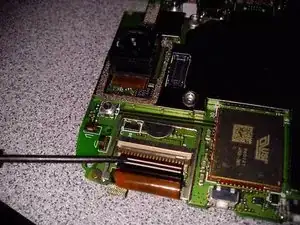

    • Use a flat head screwdriver to flip up the FPC connector.

    • Once the plastic flipper has been flipped, slowly nudge the flex cable out of the socket.

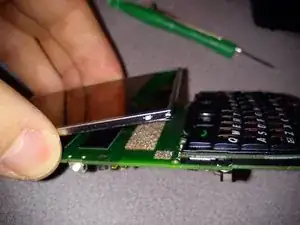

  13. LtSNJZ4XjADupPOD

    • Slowly lift the LCD from the logic board

    • Be mindful of double-sided tape on the backside of the LCD holding the mainboard to the screen.

    • Always handle the LCD with care so you do not crack it or apply any finger prints to the face of the LCD

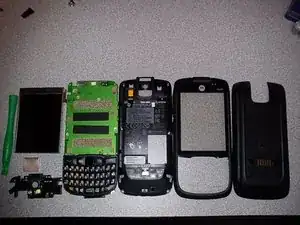

  14. kof1xojcSBYsAcOC

    • Lay all the parts out so you can easily see what needs replacing or repairing.
