Introduction
This guide details how to remove the internal backplate of your Motorola i90c phone to expose the speaker, the headphone jack, and the motherboard.
-
-
Use your fingers to push the battery upward from the bottom.
-
Lift upwards to remove the battery.
-
-
-

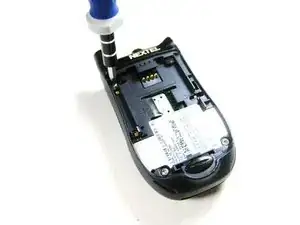

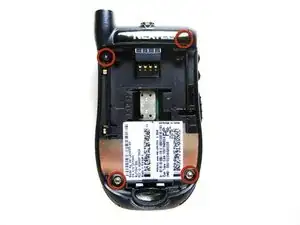

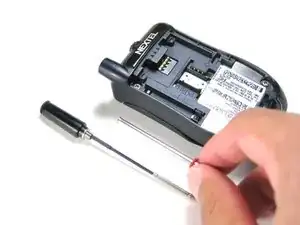

Unscrew the 3 screws shown.
-

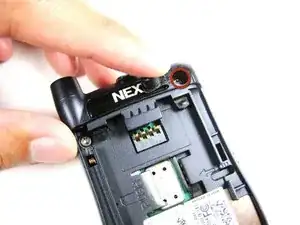

Lift up the right part of the Nextel logo and unscrew the screw underneath.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
