Disassembling Nokia 1110i (RH-93) made in Hongrie

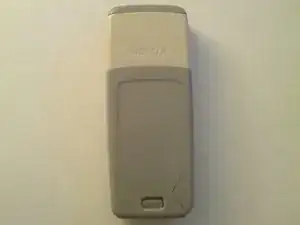

Turn the device face down and press on the small button at the bottom . Slide the back case down.

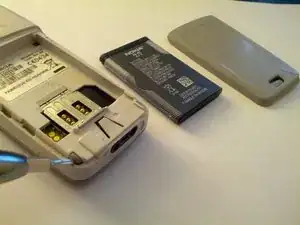

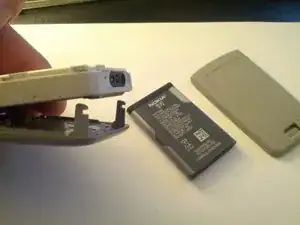

To remove the battery, use your finger to insert it in the groove and pull the battery out.

To remove the protective cover, use the tool shown and press the grey button at the left bottom.

The front cover ejects as shown. Remove it carefully to avoid damage.

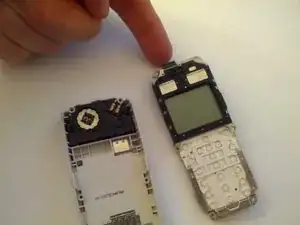

The keypad case can be removed easily. Pull it up off the device.

Use a T6 Torx screwdriver to remove the screws.

Find this channel at the top of your device.

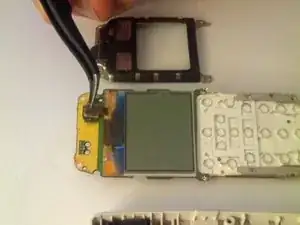

Use a pair of tweezers to remove it carefully without harming the surroundings.

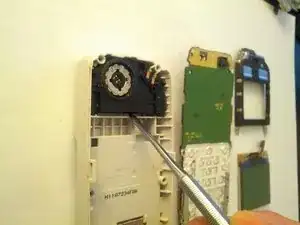

Insert the spudger into the section to remove the module.

Use the spudger to remove the module casing safely.

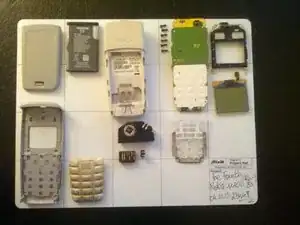

Your device is successfully disassembled.
