Disassembling Nokia 2366i Main Display

Written By: Michael Machado
  • Comments: 0
Disassembling Nokia 2366i Main Display

Difficulty

Moderate

Steps

9

Time Required

No estimate

Introduction

Removing the Main Display

  1. dToaCjApAuEZbFIj
    dToaCjApAuEZbFIj
    wIfvndXTtrXHGZwK

    • Turn off the phone.

    • Position the phone so that the back side is in view.

  2. gIMpIet1QnJRckE2

    • Apply pressure on the cover while simultaneously sliding the cover downward.

    • Remove the back battery cover.

  3. WNcDqTYUY12gNFN2
    WNcDqTYUY12gNFN2
    tloSkENvMNJqlnOj
    4cotBqZpKnDuieqL

    • Insert the spudger between the base of the phone and the phone battery.

    • Position the phone so that the battery won't fall out of the phone.

    • Carefully lift the battery out of the phone.

    • The battery lifts out of the phone easily.

  4. pIu3LkHAalph3H6i

    • Keep the phone closed.

    • Hold the phones sideways with the front cover of the phone facing up.

  5. mCygHCfGAFiMbukf
    mCygHCfGAFiMbukf
    nTlxDMWeGmgZE1UJ

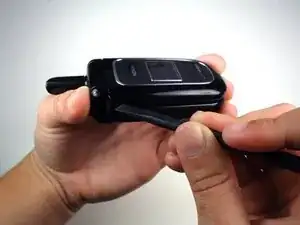

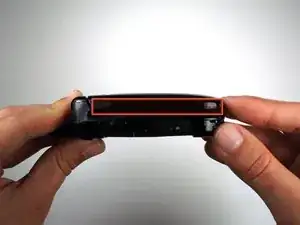

    • Find the slight crease on the side that divides the display assembly in half.

    • Slowly wedge the spudger into the crease.

    • It's a little difficult to perform this step because the crease is narrow. Do not rush because you may damage the phone

  6. ShvNvWlT5dX2ovTn
    ShvNvWlT5dX2ovTn
    DiMvNVEFIKV45cXe

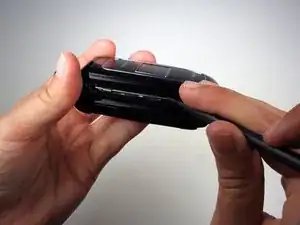

    • Run the spudger all along the crease while lifting up.

    • Separate the front cover from the front base.

  7. B1yIVOxsWJkCCPkY
    B1yIVOxsWJkCCPkY
    NlfYABZOPXBpyyNo

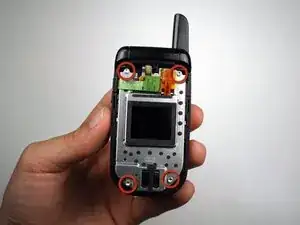

    • Remove the four 5mm screws on the metal casing using the T6 Torx screwdriver.

  8. U4CSxnRCB1rQp6Hd
    U4CSxnRCB1rQp6Hd
    pPAEKtyEWXGJfZWK

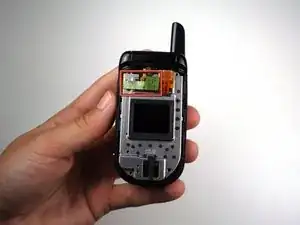

    • Using the spudger, disconnect the green display cable.

  9. vl1CvnbmiF34GCps
    vl1CvnbmiF34GCps
    WTjZh6sLF5DLNhBF
    ZE2MD4FAa3g3mawL

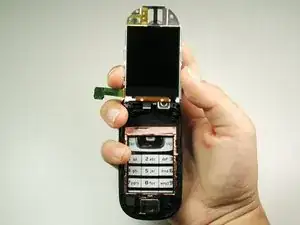

    • Lift the metal casing.

    • Be careful not to pull the casing too hard because it is still attached to the phone by a wire.

    • Remove the main display from under the metal casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
