Disassembling Numark TT1600 Circuit board

Written By: Sukhjinder
  • Comments: 0
Disassembling Numark TT1600 Circuit board

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

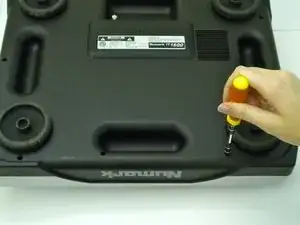

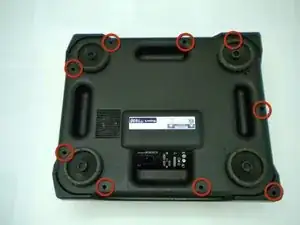

  1. iDu2XBkyifcwmuRi
    iDu2XBkyifcwmuRi
    hAHmOKbplJj3OHDT

    • Flip over the turntable and remove the nine screws on the outer edges.

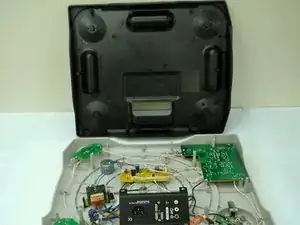

  2. EZGyhjKTlpsfWqfb

    • Remove the back cover by pulling it apart.

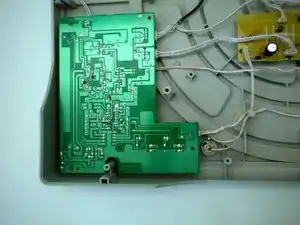

  3. 4RSvmQfUUbj5SyKt

    • Locate the largest circuit board inside the device.

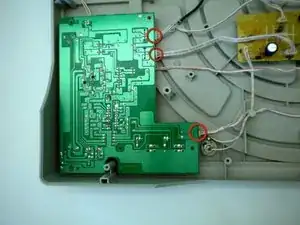

  4. awL2Yr2DlUbFOUXH

    • Locate the wires that are plugged into the side of the circuit board.

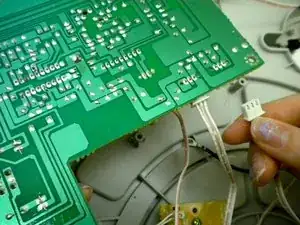

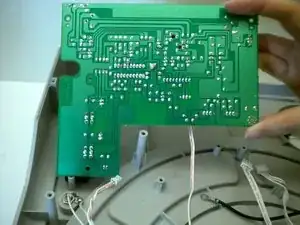

  5. UYXWaOVkHKhm3imM
    UYXWaOVkHKhm3imM
    3tmnJlRJGyLHDWXk

    • Gently pull out the wires plugged into the circuit board.

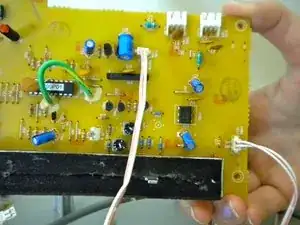

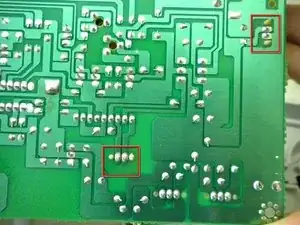

  6. iBYLMBYcyE25X6y4
    iBYLMBYcyE25X6y4
    sBFIAJVHjBDMrEvM

    • Once the wires are unplugged you will notice two more wires plugged into the bottom of the circuit board.

    • Note that these wires are soldered onto the circuit, indicated by the red markers.

    • To completely remove the circuit board these wires must be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
