Dyson DC58 Cyclone Replacement

Written By: Herllaine Asistio
  • Comments: 11
Dyson DC58 Cyclone Replacement

Difficulty

Moderate

Steps

10

Time Required

4 minutes

Introduction

  1. tJiRyxQBpRKH5d1A

    • Make sure your vacuum is unplugged.

    • Avoid pressing the red trigger on the vacuum handle; this will power on the vacuum.

  2. jmetKeKWcHhQbZas

    • Locate the red lever parallel to the red trigger and on the side of the clear bin.

  3. APltGs2LPHLkHIXR

    • Push the red lever downward to open the clear bin. You may need to do this over a trash bin if there is debris in the clear bin.

  4. lUWpJEyEHHKynbrZ
    lUWpJEyEHHKynbrZ
    CpIBtZ1WHJbqu11V

    • Push the red lever downward again while pulling the clear bin away from the main body of the Dyson vacuum.

  5. EuYXfOgtPJfCpMXB

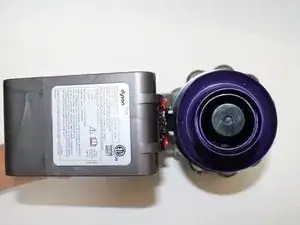

    • Flip the vacuum over so that the silver cyclone part of the vacuum is now at the base.

  6. LkcsvYpSv3qD5fOL
    LkcsvYpSv3qD5fOL
    WEceCnmaJKkXKRDb

    • Locate the two visible white clips seen between the main body and the purple cyclone of the vacuum.

    • Use tweezers to pinch the two visible white clips together.

    • It may require a few tries to pinch the clips since the space between the main body and cyclone is small.

  7. tckHZ3AuuBo1URiR

    • Tilt and pull the main body away from the purple cyclone of the vacuum.

    • You may hear a loud snap when the cyclone is released from the main body, this is to be expected.

  8. Jy4OiZ3YJhJXj5SH
    Jy4OiZ3YJhJXj5SH
    GqNKECkDUEOgedcO

    • Use the metal spudger placed between the black rim and the purple rim to separate the purple screen cover from the cyclone body.

    • Pry all the way around the screen cover.

  9. jcZ1roH43JH3pAPm

    • Use a T9 screw driver to remove the five 14mm screws around the edge of the cyclone body.

  10. uJe5t4PiGpLvRAhk
    uJe5t4PiGpLvRAhk
    HUYpENG6G1W3XcZR

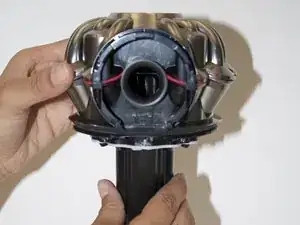

    • Pull down on the black tube-like part of the silver cyclone body to remove it from the cyclone of the Dyson.

    • You may need to wiggle the tube as you are pulling down to loosen the pieces apart.

Conclusion

To reassemble your device, follow these instructions in reverse order.
