Introduction
How to disassamble the Dyson V10's Motorhead for maintainance and spring-cleaning.
-
-

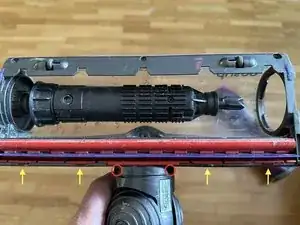

Remove red lid by releasing the clamps (yellow arrows) with a spudger to get access to more screws, that hold the translucent shield.
-

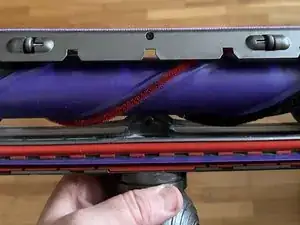

Remove Two Torx screws that hold the silver cover-plate on the opposite side of the motorhead that covers the translucent shield.
-

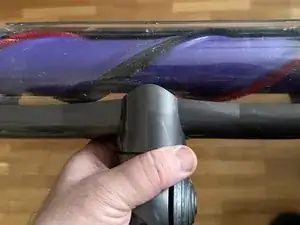

Remove the rotating brush by realeasing it with a coin.
-
-
-

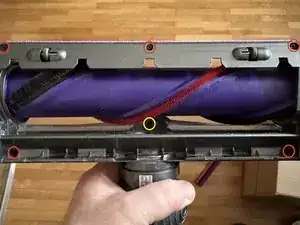

Remove the five Torx screws (red), that hold the translucent shield.
-
Remove the single shorter Torx screw (yellow), that fixes the silver and the translucent shield.
-
-
-

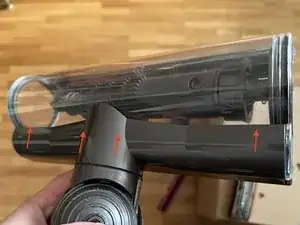

Remove the silver shield by gently pulling into the directions of the red arrows. (This is the only tricky part of the whole procedure.)
-
-
-

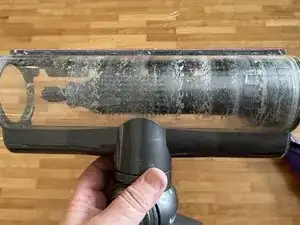

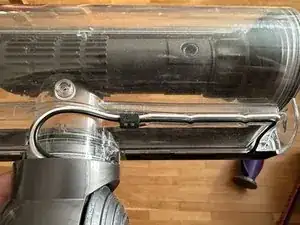

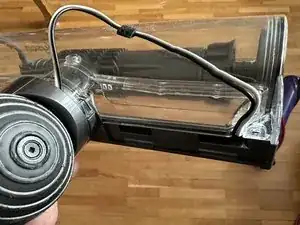

After removal of the silver-shield the translucent shield can be removed easily. The black and white cables are attached with the black plug and can be reattached easily on reassambly.
-
-
-

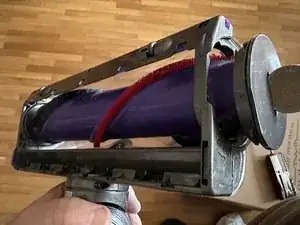

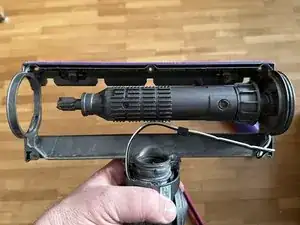

After removal of the translucent shield, both the shield and the silver-skeleton that holds the rotating motorhead can be cleaned thoroughly.
-
To reassemble your device, follow these instructions in reverse order.
