Introduction
Use this guide to replace the carburetor in your Echo Chain Saw CS-590 (2019).
Although it's not necessary to remove the guide bar, it's highly recommended you do so to minimize any damage to the chain and to yourself.
Note: Check that the serial number on your replacement part matches the one listed in the "Parts" section of this guide.
-
-
Use a T25 Torx screwdriver to remove the five screws securing the front handle to the bottom and right side of the device:
-
Four 24 mm-long screws
-
One 25 mm-long screw
-
-
-

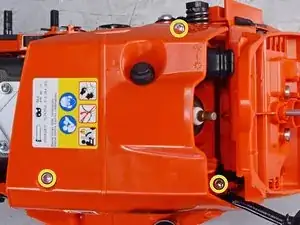

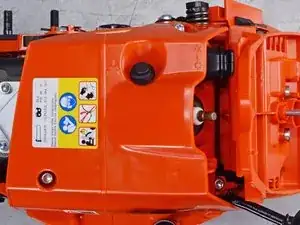

Push the guide bar towards the back of the device to create slack in the saw chain.
-
Pull the guide bar away from the device to separate the saw chain from the clutch drum.
-
Remove the guide bar.
-
-
-

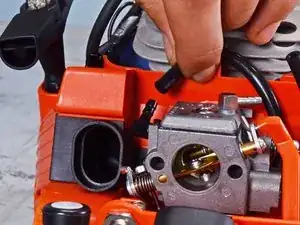

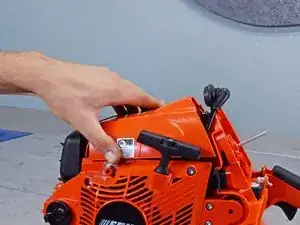

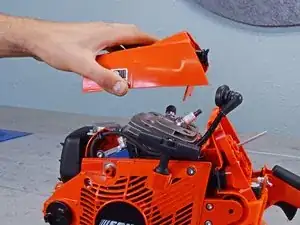

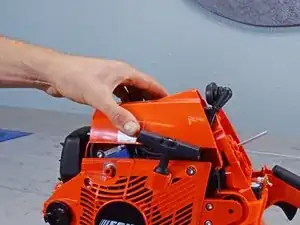

Use your fingers to pull the right fuel pipe out of the carburetor.
-
Repeat the same procedure for the left fuel pipe.
-
-
-

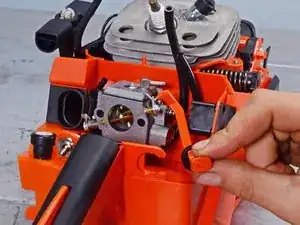

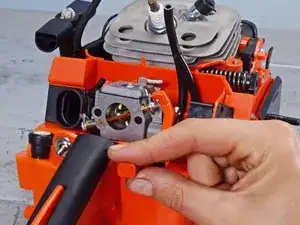

Pull the choke lever through its bracket to separate it from the frame.
-

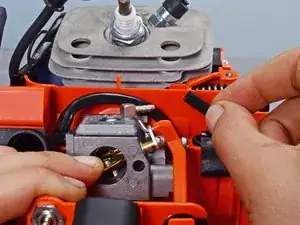

Twist the lever counter-clockwise to disconnect its clip on the carburetor.
-
Remove the choke lever.
-
-
-

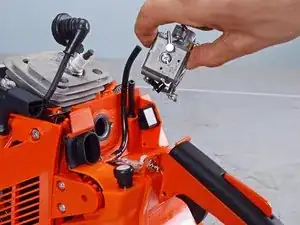

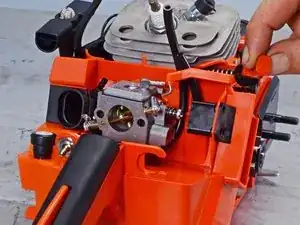

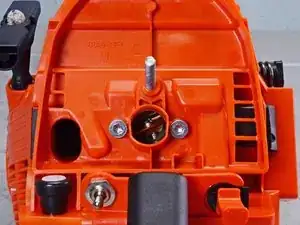

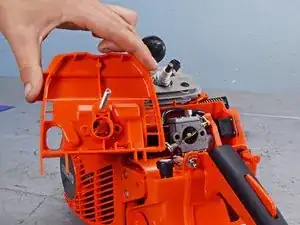

Lift the carburetor out of its housing.
-

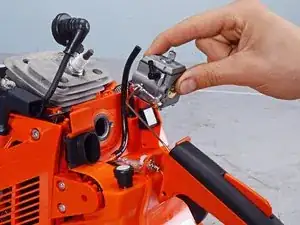

Twist the carburetor counter-clockwise to disconnect the throttle rod's metal clip.
-
Remove the carburetor.
-
To reassemble your device, follow these instructions in reverse order.
