Echo Power Pruner 254 cc PPT2620 2019 Flexible Tube Replacement

Written By: Adam O'Camb
  • Comments: 1
Echo Power Pruner 254 cc PPT2620 2019 Flexible Tube Replacement

Difficulty

Moderate

Steps

8

Time Required

15 - 30 minutes

Introduction

Use this guide to replace the small flexible tube that sits below the handle on an Echo Power Pruner 254 cc PPT2620 2019.

  1. gigWZpfBcrWPbDJp
    gigWZpfBcrWPbDJp
    G43OEnDJ1FPduch1

    • Move the stop switch into the "stop" position to turn the pruner off before attempting any repairs.

    • Pull the spark plug cap straight off of the spark plug.

  2. tXlLKriELHhOyHXw

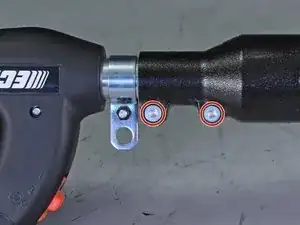

    • Use a T25 Torx screwdriver to loosen (but not remove) the two screws clamping the main pipe assembly to the control handle.

  3. YlfCcEx6OT1KOekW
    YlfCcEx6OT1KOekW
    OK6KUWqLVU4l4ILo

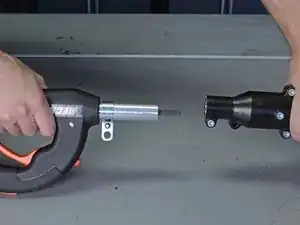

    • Remove the control handle from the main pipe assembly.

  4. yWBBim1TLeLdN6tO

    • Use a T25 Torx screwdriver to remove the seven screws holding the control handle together.

  5. aZBeuAYQONj2NNMY

    • Lift the top half of the control handle straight up to remove it.

    • The following step shows the throttle trigger and throttle lockout removed. These parts do not need to be removed for this guide.

  6. DK11y4RabgMgTYur

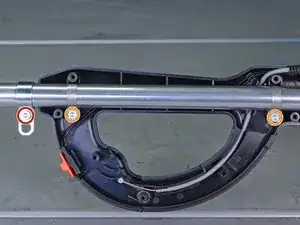

    • Use a T25 Torx screwdriver to loosen (but don't remove) the screw clamping the strap hook to the handle pipe.

    • You may need an 8 mm socket and socket wrench to hold the nut on the back of the strap hook while you loosen the bolt.

    • Remove the two T25 screws securing the handle to the handle pipe.

  7. VhYWQVR41oDFMW4b
    VhYWQVR41oDFMW4b
    eeYTXGIMIZpOoJeX
    bZFQJiIETayZRnYg

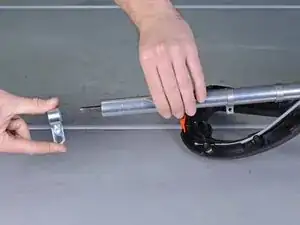

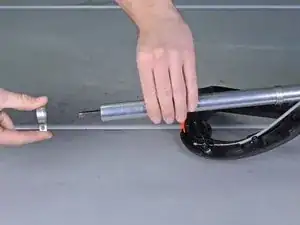

    • Slide the strap hook off the pipe and remove it.

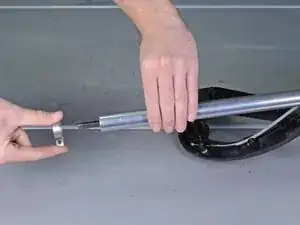

    • Slide both clamps that held the handle off of the pipe and remove them.

  8. ZMCMMdXP33RPsEAu

    • Slide the flexible tube off of the handle pipe and remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
