Echo Power Pruner 254 cc PPT2620 2019 Throttle Trigger Assembly Replacement

Written By: Adam O'Camb
  • Comments: 0
Echo Power Pruner 254 cc PPT2620 2019 Throttle Trigger Assembly Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 30 minutes

Introduction

Prereq-only guide to remove the throttle trigger in an Echo Power Pruner 254 cc PPT2620 2019.

  1. gigWZpfBcrWPbDJp
    gigWZpfBcrWPbDJp
    G43OEnDJ1FPduch1

    • Move the stop switch into the "stop" position to turn the pruner off before attempting any repairs.

    • Pull the spark plug cap straight off of the spark plug.

  2. tXlLKriELHhOyHXw

    • Use a T25 Torx screwdriver to loosen (but not remove) the two screws clamping the main pipe assembly to the control handle.

  3. YlfCcEx6OT1KOekW
    YlfCcEx6OT1KOekW
    OK6KUWqLVU4l4ILo

    • Remove the control handle from the main pipe assembly.

  4. YbwKCishTSL3DDXc

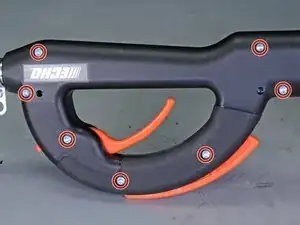

    • Remove seven T25 screws holding together the control handle.

  5. QWBYoUGaL6Bt53jd

    • Lift the top half of the control handle straight up to remove it.

  6. ZgmepbhxUZAoWJfE
    ZgmepbhxUZAoWJfE
    oJAFrEOIrRiaSWUt

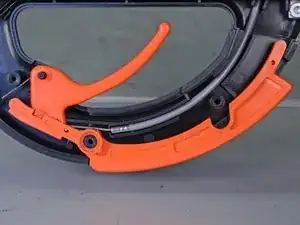

    • Lift the throttle lockout out of the control handle.

    • During reassembly, make sure the throttle lockout and the throttle trigger are oriented correctly, and that the small wire spring is inserted in the hole on the throttle lockout, as shown in the second photo.

  7. 22RbwYutWFWcALZY
    22RbwYutWFWcALZY
    FjHFbWPFcIUEXjJl
    UgDDjGmMwPULwani

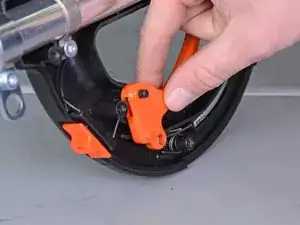

    • Lift the throttle trigger out of the control handle.

    • During reassembly, make sure that the spring inside the trigger is positioned so that it loops around the trigger's hinge post and rests against the screw post to the left of the trigger.

  8. 63jYyfurqkNrxRMw
    63jYyfurqkNrxRMw
    h5IV64cLSL2JiFp5

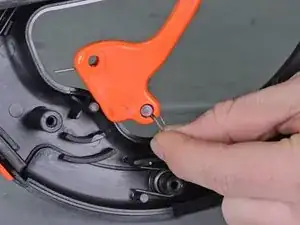

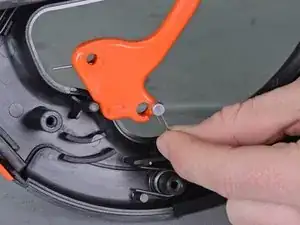

    • Pull the throttle cable sideways through the slot in the throttle trigger to remove it from the trigger.

Conclusion

To reassemble your device, follow these instructions in reverse order.
