Introduction
The DEEBOT model N97S did no longer hold a charge. Replacement batteries are sill readily found online and fairly easy to change,
Tools
Parts
-
-

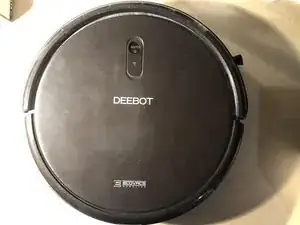

Here is the DEEBOT DN622.11 also know as a N79S.
-
Turn it over to have the underside exposed
-

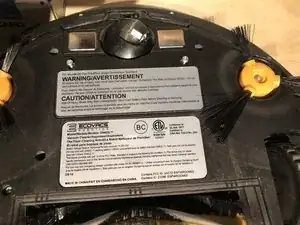

Locate the two Phillips head screws that hold the battery cover in place
-
-
-

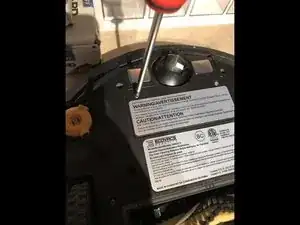

Unscrews the two Phillips head screws
-

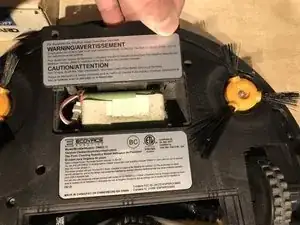

Remove the battery cover
-

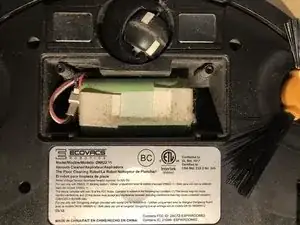

Note position of the battery in the battery compartment
-
-
-

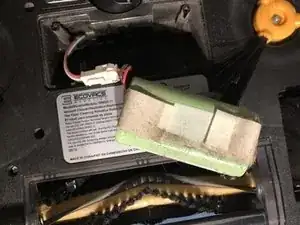

Lift the battery out of the compartment
-

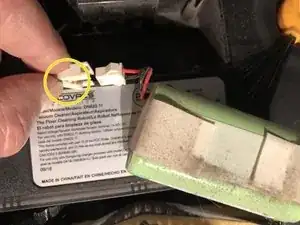

Disconnect the battery connector by squeezing the tab on the female end of the connector. The battery can now be replaced.
-
Conclusion
To reassemble your Deebot, follow these instructions in reverse order.
