Eee Pad Transformer Prime TF201 Screen Replacement

Written By: David Garcia
  • Comments: 2
Eee Pad Transformer Prime TF201 Screen Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

This guide will show you how to replace a broken or cracked screen on your tablet.

  1. S1LLOFFqlrsrycAQ

    • Power down your device.

    • Place the small suction cup on a corner of the screen and lightly pull up to expose a seam between the screen and case.

  2. VDHaNdeRnWbvCVxw
    VDHaNdeRnWbvCVxw
    1FPKdFUcjAu5Um4H
    QtFrIEeCYGUyoJVv

    • Insert the plastic opening tool into the seam near the corner of the device.

    • Slowly slide the tool around the perimeter of the device, gradually prying up the screen.

    • It is normal to hear snaps as the spring clips holding the screen in place are released.

    • It is also normal to hear adhesive separating, as a small amount is used to help secure the screen.

    At the bottom of the pad, it is not spring clip. You can activate the release of the clip at the two hole at the bottom of the pad by sliding a small level inside the rectangular hole - one on each side. There is some tape used to hold the screen as well.

    Joe Cheung -

    Yes! You have to be careful here because there are slide clips along the bottom of the screen that secure the tablet halves together. You can see small holes in the bottom of the dock connector slits. You have to insert a pointy object, I used a small screwdriver, to slide the latches to the left. If you don't do this step you can damage the tablet and never get the two halves back together securely.

    Seamus Nugent Couch -

  3. FfurqoI4EAn5xnff
    FfurqoI4EAn5xnff
    jWDndEjl4jaRAKn4
    PeF2F3InYgvjPR1H

    • When the screen is free of all spring clips and adhesive, slowly open the device like a clam shell with the hinge being the left hand side of the device.

    • Do not completely separate the screen from the case by more than a few inches, as they are still connected by three orange ribbon cables.

    • Safely place the device back on the table by laying the screen face down.

    • There will be some slight overlapping of the back of the case over the screen.

  4. lSg1NRacSIEGulVI
    lSg1NRacSIEGulVI
    rBWjnljVMIma14DB

    • Disconnect the ribbon cable by placing a plastic opening tool under the black plastic tab that is on the opposite side of the port as the ribbon cable.

    • Pry upward until the black tab moves 90 degrees, and gently pull the ribbon cable out of the port.

  5. YYWiwG1Nq22oOZcF

    • Place a plastic opening tool under the white plastic tab on one of the ribbon cable ports.

    • Pry upward until the black tab moves 90 degrees, and gently pull the ribbon cable out of the port.

    • Repeat the previous process to remove the other ribbon cable.

  6. ruDFFAFlUvEcXUSc

    • Remove the battery (secured by six screws and a white wire connector) by following the removal portion of this battery replacement guide.

    • The device that we wrote this guide for did not come with a battery, so we cannot include it in our own guide steps.

    • The battery is removed during all repairs to protect against short circuits, shocks, and internal damage to the device.

  7. mYWQKQjbUxjAPQKI
    mYWQKQjbUxjAPQKI
    buHDYNTydJFaVXbb

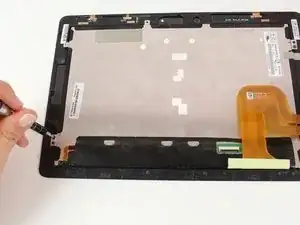

    • Remove the six FH-00 2.2mm screws using the Phillips #00 screwdriver.

    • Start heating up the iOpeners now.

  8. NKUs1yrDSvtOYZpl
    NKUs1yrDSvtOYZpl
    5Af1ty54njjRSN4G

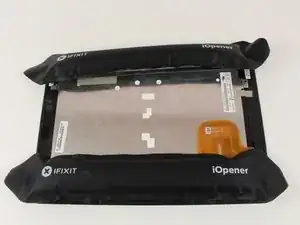

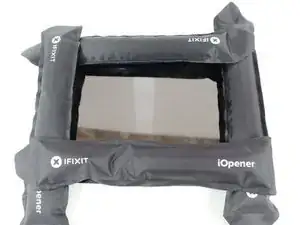

    • Place the iOpeners on the edges of the tablet and let sit for 2-5 minutes

    • Remove the iOpeners and repeat on the other side of the tablet

  9. pEeDecIPD1Afn5Cv
    pEeDecIPD1Afn5Cv
    mKvskGBT2YMtZQeq

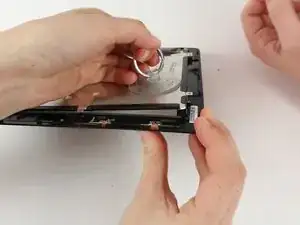

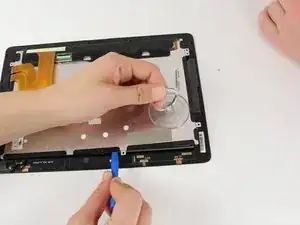

    • Slowly pry open the tablet using the plastic opening tool.

    • Place small suction cup on the screen and pull apart slowly to separate screen

    • Be careful not to jerk the screen apart, as this may cause unnecessary damage to the screen or the LCD.

Conclusion

To reassemble your device, apply glue to the screen and press it to the LCD, then follow these instructions in reverse order.
