Epson PowerLite 77c Lamp Replacement

Written By: Gretchen Thomas
  • Comments: 0
Epson PowerLite 77c Lamp Replacement

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

This guide demonstrates how to replace an Epson PowerLite 77c (V11H254220) lamp, part number V13H010L41. The projection lamp is the heart of a projector, as it lights and displays images. If you're experiencing issues involving a dim image, or if the lamp isn't illuminating at all when the projector is on, it's probably time to replace the lamp. Issues with the lamp are typically indicated by a flashing orange light under the power button.

There is mercury in the device’s lamp; therefore, there are state and local regulations regarding disposal and recycling. Do not discard in the trashcan.

Before removing the lamp, be sure power down and unplug the device; allow it to fully cool before beginning.

  1. R1CBCKAehGmaBRZK

    • Use a Phillips #0 screwdriver to remove the one 5.0 mm screw from the lamp cover on the back of the device.

  2. QOwWNbf5JkcXSitR

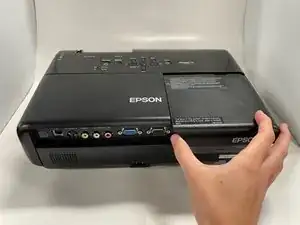

    • Slide the cover toward you, then lift it to remove it.

  3. FTT5F51llwAEsQ3B
    FTT5F51llwAEsQ3B
    IdEfNt54ibBQDZc3

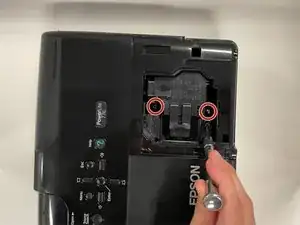

    • Loosen the two 5.0 mm captive screws with a Phillips #0 screwdriver.

    • Captive screws cannot be fully removed. Simply loosen the captive screws until the lamp housing releases, but do not attempt to remove them.

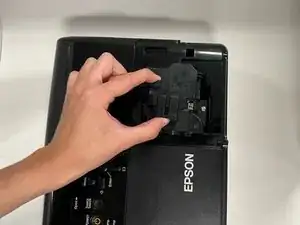

    • Pinch the two release triggers to unlatch the lamp housing, and lift upward to remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
