Epson Powerlite 460 Motherboard Replacement

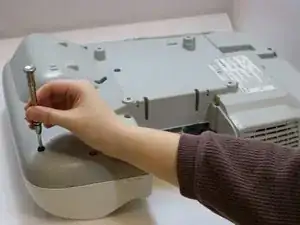

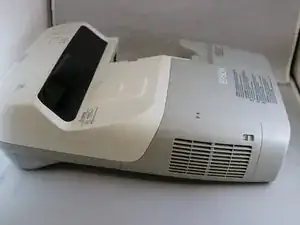

Orient the device so that the projection window is facing down and the bottom of the device is visible.

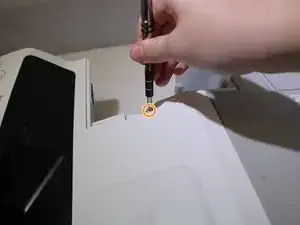

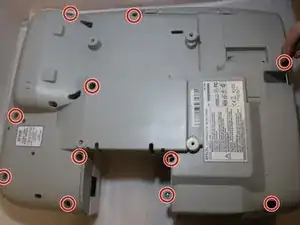

Remove the eleven 13.3mm screws using a Phillips #2 screwdriver.

Flip the device over so that the projection window is facing up.

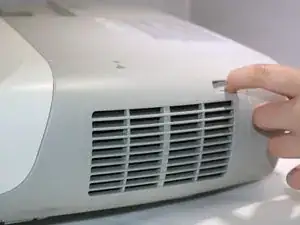

Slide the air filter cover opener in the direction indicated by the arrow to release the air filter cover.

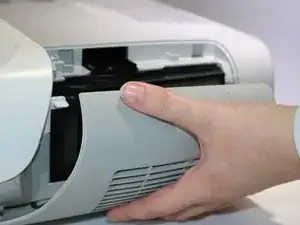

Remove the air filter cover.

Remove the two 13.3mm screws from the top cover above the air filter using a Phillips #2 screwdriver.

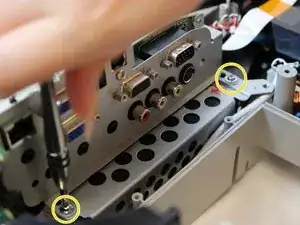

Remove one 13.3mm screw from above the connection panel using a Phillips #2 screwdriver.

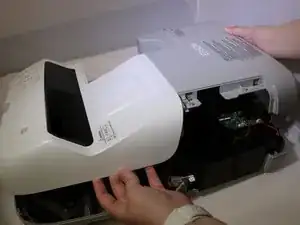

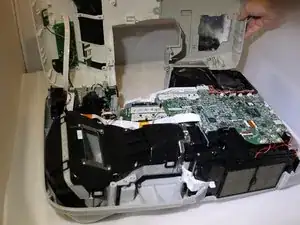

Remove the cover from the projector and set aside.

Use the opening tool to disconnect eleven clip cables on the motherboard.

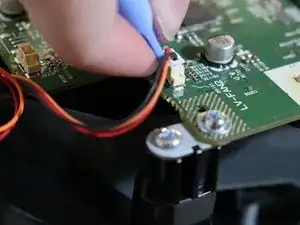

Disconnect the black cable clip by pressing the side tabs. Use the opening tool to release the cable if it is difficult.

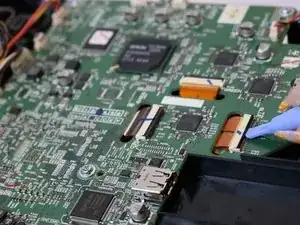

To disconnect the ribbon cables, use the opening tool to lift the locking flap on the connector and slide the cable back and out of the connector.

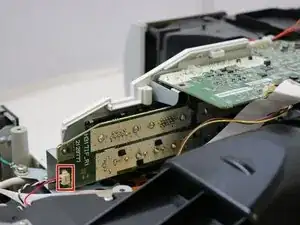

Disconnect the clip cable from below the motherboard and behind the connection panel.

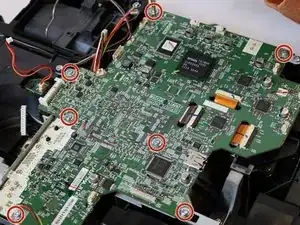

Remove seven 8.1mm screws from the motherboard using a Phillips #2 screwdriver.

Remove the 8.1mm screw from the back of the projection panel below the motherboard using a Phillips #2 screwdriver.

Remove two 8.1mm screws from the front of the projection panel using a Phillips #2 screwdriver.

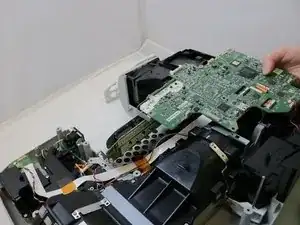

Gently lift the motherboard out of the device.
