F. PanelDue Firmware Update

Written By: David Husolo
  • Comments: 0
F. PanelDue Firmware Update

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

Instructions for updating the PanelDue firmware can also be found here

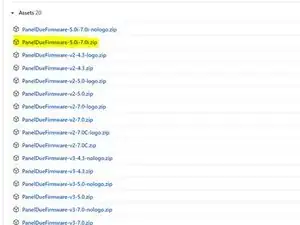

  1. rHFru1X2fTTc4bLo

    • Download the latest stable firmware from the Duet Github and extract the zip file

    • Make sure you download the correct version. The PanelDue 5i and 7i both use the same firmware binary. The file you want is named "PanelDue-5.0i-7.0i.bin"

    • FYSETC documentation says to use the 5i/7i combined binary("PanelDue-5.0i-7.0i.bin") for their 5i and 7i screens. If you use the combined version for you FYSETC 5i/7i your color scheme will be incorrect.

    • You need to install "PanelDueFirmware-v3-7.0.zip" or "PanelDueFirmware-v3-5.0.zip"

    • Download and install Bossa

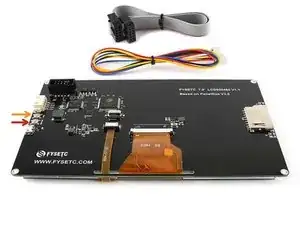

  2. kIGPjUbmDFTg2AA5

    • Hold the erase button on the back of the PanelDue

    • Connect a USB Micro cable from your PC to your PanelDue. Release the erase button and press the reset button.

    • Identify the COM port the PanelDue is using.

    • Click Start->Control Panel->System->Device Manager. Expand Ports (COM and LPT)

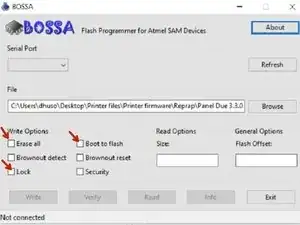

  3. gFKN4bsOYF2QRqkx

    • Once connected open Bossa.

    • Select the port in the dropdown. Click Browse and select the PanelDue firmware

    • Select the checkboxes for Erase all, Lock, and Boot from flash

    • Click Write. Bossa will load the firmware to the PanelDue. Once upload is complete, click Verify.
