Introduction

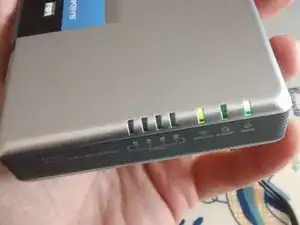

When you power up the router, after 4 seconds the power light changes from green to yellow.
Sometimes this is related to a corrupted firmware, but other times is related to a faulty power supply.
In this guide I'll show you how to diagnose this issue and fix by replacing one single component from the power supply.
Parts
-
-
Insert your X-Acto knife on the groove in order to remove part of the glue that is holding the two parts.
-
-
-

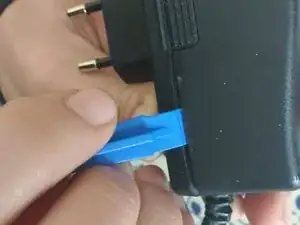

Using your prying tools or a butter knife, slide it in and then bend it until you ear it pop.
-
-
-

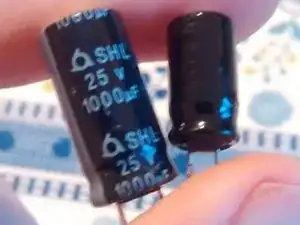

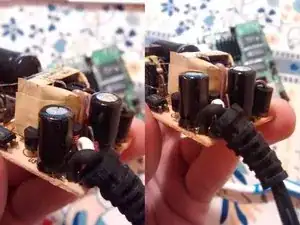

On the board of the power supply you'll probably see the faulty capacitor. Is the one on the right that has swollen.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
