FujiFilm FinePix A340 Motherboard Replacement

Written By: Cody

Comments: 0

FujiFilm FinePix A340 Motherboard Replacement

Difficulty

Moderate

Steps

12

Time Required

25 - 50 minutes

Introduction

How to remove and replace the logic board.

Tools

Step 1

Pkt3FmqJAJ4aQLDB

To prevent the danger of electric shock, remove the batteries before continuing to the next steps.
Slide the battery cover to the side to release the batteries.

Step 2

vmRqxIHXMXfnccM1

vmRqxIHXMXfnccM1

Fgu3NMD2PrESRQSM

6yWExUFP3GMeI43j

Remove the five screws, as pictured, from the camera casing using a tri-point Y0 screwdriver.

Step 3

fAhbFy25dmJLRN2h

fAhbFy25dmJLRN2h

wFY3hhf6RXgwDrsl

Grab the case with your hands and slowly pull back the outer casing.

Step 4

4ajevGoBgvNcgrMu

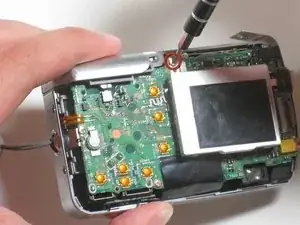

Locate the LCD screen and anchoring screw.
Remove screw.

Step 5

eQXTqDBGiQWjfHOq

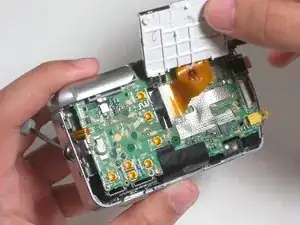

Carefully pull the LCD screen away from the board it is connected to.

Step 6

HwIDHLHKLbqNmSMZ

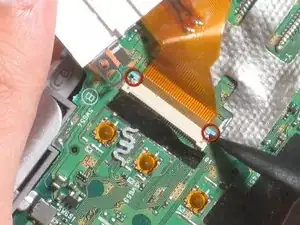

Push both blue switches away from the holding device to unleach lcd ribbon.
Be careful when removing ribbon. If you damage it, you will need to replace it as well.

Step 7

bMLVTGfgqxoHSQnS

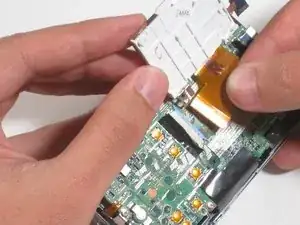

Carefully detach the ribbon from where it was connected by the blue pins.

Step 8

E1BaJJrZ3cESyaiM

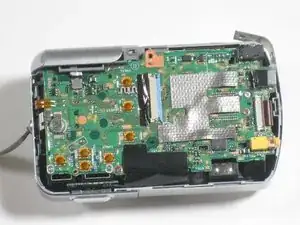

Now that everything has been disconnected from the board, remove LCD screen.

Step 9

TBJLP4wWVapldHRS

Remove the two screws holding the circuit board down.

Step 10

xOlWPjj1wryHrk53

xOlWPjj1wryHrk53

AiUE5c5F5eGvCGuo

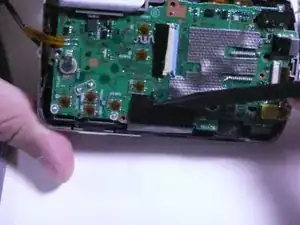

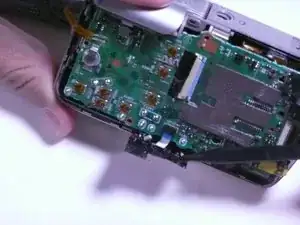

Remove black sticky tape from circuit board and camera case.

Step 11

UHUaTvOGPLURWbIY

UHUaTvOGPLURWbIY

ZnXU4N4YDBxMCABZ

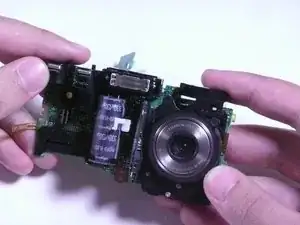

Gently pull the circuit board away from the front side of the camera.
Be careful when removing assembly as to not break any solder leads or damage lens assembly.

Step 12

gsOUCxgnKxyFIrus

gsOUCxgnKxyFIrus

qMu2OPBj3SLCeYS4

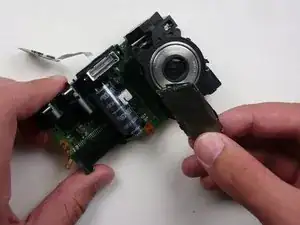

Remove the logic board by pulling straight away from assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
