Introduction
To replace the motherboard in your device you will need a T4 Torx screwdriver, a metal spudger, and a replacement motherboard. Be sure to have a large workspace to avoid mishandling or damaging the device components.
-
-

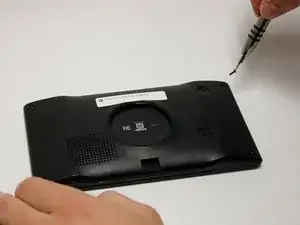

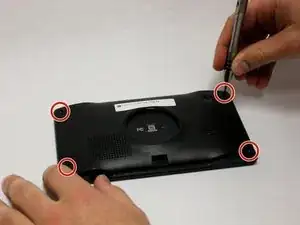

Using the T4 Torx screwdriver, unscrew all four of the screws (1/4 inch, 6.35 mm) from the back panel of your device.
-
-
-
Remove the back panel using the metal spudger tool.
-

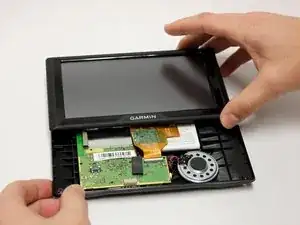

Flip the device over with the screen facing upward and open the device.
-
-
-

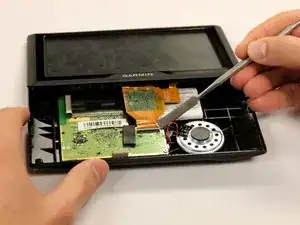

Use a plastic spudger to flip up the white clamp holding the orange ribbon in place to the motherboard.
-

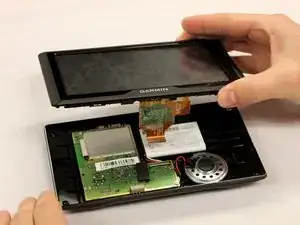

Lift the screen and orange ribbon away from the motherboard.
-
-
-
Using the T4 Torx screwdriver, unscrew the four screws (1/2 cm, 5mm) from the motherboard.
-
Then, lift the motherboard out of its position.
-
-
-

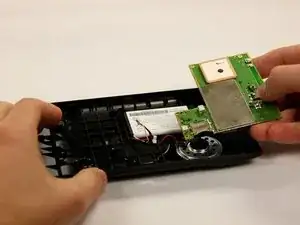

Flip the motherboard over towards the right.
-
Then, carefully disconnect the two sets of wires that are connected to the battery and the speaker using your fingers.
-
Remove the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
