Garmin Nüvi 370 Speaker Replacement

Written By: Matt West
  • Comments: 0
Garmin Nüvi 370 Speaker Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

In this guide the repairer replaces the speaker of the device by disassembling the device further to expose the motherboard and speaker.

Prerequisite Guide:

Disassembling Garmin Nuvi 370 Into Core Components

Tools Used:

  • Fine Point Tweezers
  • Spudger

Estimated Duration: 10 minutes

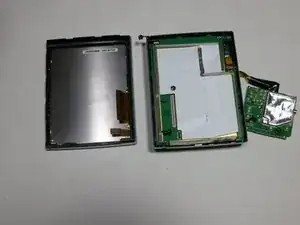

  1. HiQh2OBjP4DPYIIq

    • After following the instructions in the main dis-assembly guide, you should have the screen detached from the motherboard.

  2. 1DXx4QJNwSB6bHkM
    1DXx4QJNwSB6bHkM
    KlF5aUhj2mlL2dsi
    XhIfIKFZqsmcOvPL

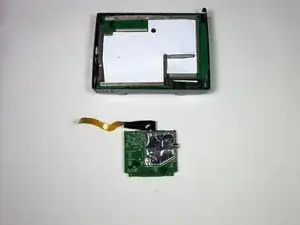

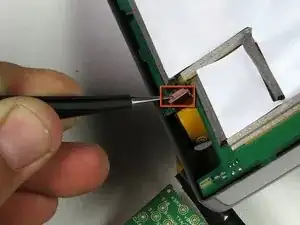

    • Use the tweezers or the spudger to lift the tan latch off the ribbon cable (ZIF connector)and gently pull out the ZIF connector and cable from underneath the opened latch.

  3. MI6DXGKZpiLfE2bN
    MI6DXGKZpiLfE2bN
    sUtgNDDPrOWN6gi1

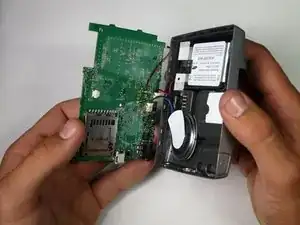

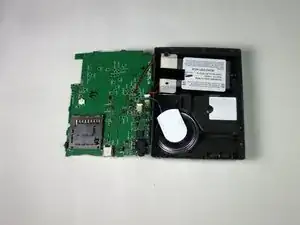

    • The motherboard will now freely separate from the back casing; lay it flat next to the housing.

  4. YjByDImXh2QUuYVB
    YjByDImXh2QUuYVB
    Bs2mMmpDow2XVZjF
    mCRRhNCTeHjtyxSl

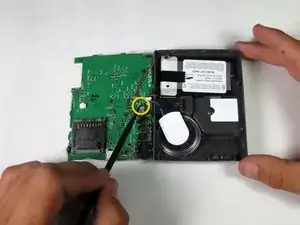

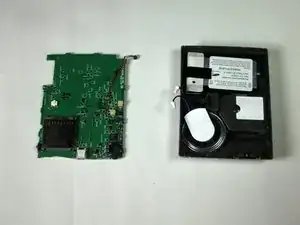

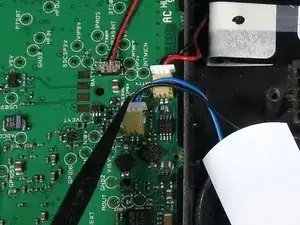

    • Detach blue speaker cable from motherboard.

    • Battery cable is detached in this picture, and it is not required to do so to install a new speaker.

  5. HdtZDCI1HU3cRHDw
    HdtZDCI1HU3cRHDw
    iSJRDjhRbubtOUkq

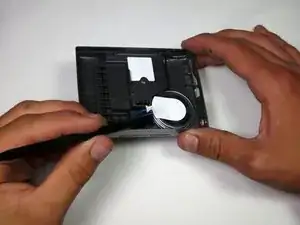

    • Detach speaker from casing and insert new, functional speaker.

    • Battery is removed in the picture and is not required for the installation of a new speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
