Garmin Nuvi 2455LMT Battery Replacement

Written By: Torrance Williams
  • Comments: 0
Garmin Nuvi 2455LMT Battery Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

This battery is a simple part to replace and will only take about 2-3 minutes. This guide requires a metal spudger and the Torx 4 screwdriver.

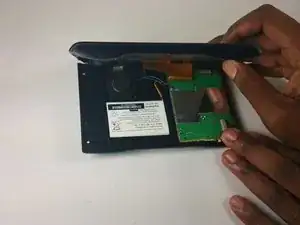

  1. MVApoGv2KAmkSdjR
    MVApoGv2KAmkSdjR
    3hiAXkXxf5DAaNBr

    • Remove the orange band from the motherboard to access screws.

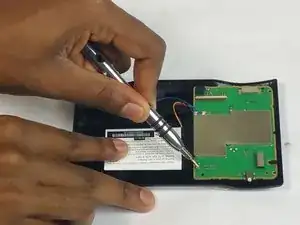

  2. TFACQJILfDIQgEHo
    TFACQJILfDIQgEHo

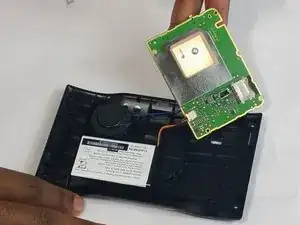

    yvWxB6jbxAMUcYJm

    • Unscrew the motherboard from the device

    • Lift the motherboard to reveal the cords underneath.

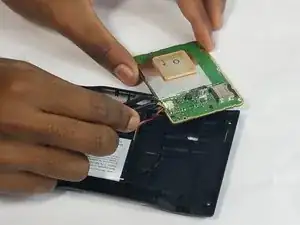

  3. b31D2dJL2SXFWVin

    • Find the cord that connects the motherboard to the battery

    • Disconnect this cord from the motherboard

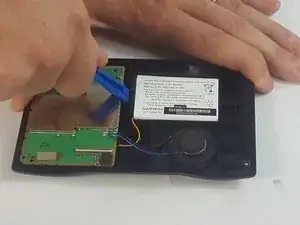

  4. 4R5VNSuJ6PMUROUT

    • Using the plastic opening tool, pry the battery from the base of the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
