Introduction
Tools
-

                  -

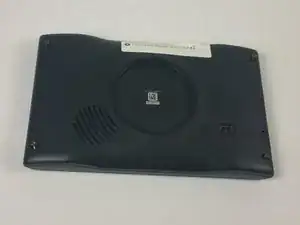

            Remove the four 2.5mm screws from the back assembly with a Torx #04 Screwdriver. Holding the GPS with a free hand while unscrewing the small screws will help stabilize the device.
-
            Holding the GPS with a free hand while unscrewing the small screws will help stabilize the device.

-

-

                  -

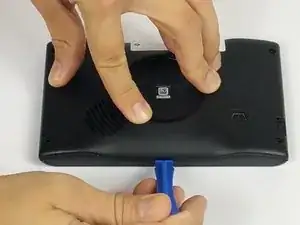

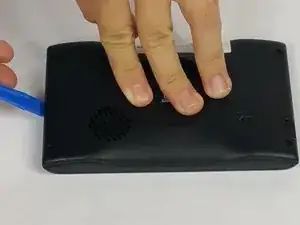

            Use the plastic opening tool on all four sides of the device to open the Garmin Nuvi LMT2455 Back Panel.

-

-

                  -

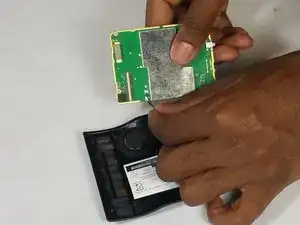

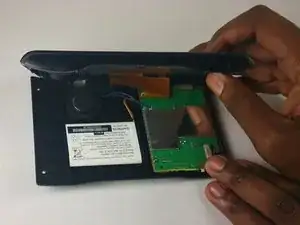

            Open the device carefully being weary of the orange band that is going from the screen to the mother board.

-

-

                  -

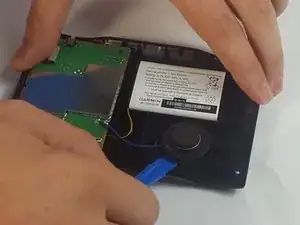

            Using the plastic prying tool, carefully pry the speaker from the plastic backing.
-

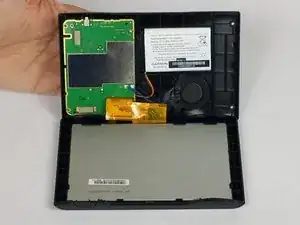

            Remove the speaker from the motherboard by gently pulling on the wire.

-


                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
