Google Home LED Board Replacement

Written By: Gabe Hyun
  • Comments: 0
Google Home LED Board Replacement

Difficulty

Moderate

Steps

3

Time Required

10 - 15 minutes

Introduction

Fix the lights on the top of your Google Home with a new LED Board.

This guide will teach you how to take apart your Google Home to remove a faulty LED Board and replace it with a new one.

  1. aeirX6JvkYeeLgAW
    aeirX6JvkYeeLgAW
    SEkPQiU1kxE4HrWp
    Asb3FAkpMM5fTVwQ

    • Removing the lid too quickly could cause you to tear the interconnect cable that attaches the base to the top of the lid.

    • Pull off the Google Home’s magnetically attached base and set it aside.

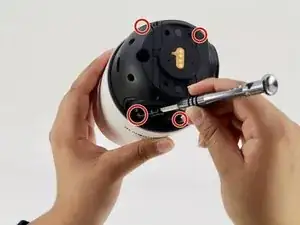

    • Using a Torx T6 screwdriver head, unscrew the four 1.7mm Torx screws deep in the speaker recess so that you can remove the lid.

    • After all four screws are out, pop the lid off the device to open the capsule.

  2. DJaQwHUjYN4oolWv

    • Carefully remove the interconnect cable using a pair of tweezers.

  3. W53sbxNTuPGYSlAW
    W53sbxNTuPGYSlAW
    PklQLWUMGj3lkYLc

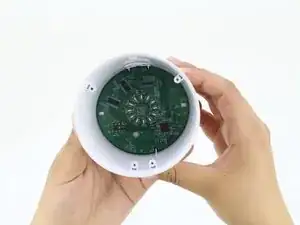

    • Use a metal spudger to pry the LED board away from the lid.

    • This will require some force because there is a strong adhesive layer that keeps the LED board attached to the lid, so don’t worry about being gentle.

    • Remove the LED board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
