Google Home Mini Disassembly

Written By: Mia Sulaiman
  • Comments: 5
Google Home Mini Disassembly

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

A guide to disassemble Google Home Mini for further repairs.

  1. L3ibTnoDCpAX1MW4

    • Place device on a flat surface.

  2. rPaByjWno23c1KRu

  3. qL6VxSw5HL4MDwic

    • Remove the lower half of the device.

    • Be careful as a black ribbon cable connects the two halves together.

    Black ribbon cable broken. Is there any chance to fix it. Please help. Thank you

    Deva Raj -

  4. hI3icGTkuj2SlbZX

    • Using a pair of tweezers, unlatch the Zero Insertion Force (ZIF) fastener that connects the ribbon cable to the board.

    • Flip up and push the ZIF fastener towards outside of the lower case to loosen it.

    What if this breaks off. Can i direct connect power.

    Hlynur Jonasson -

    Where to buy it please tell please

    Babu Vlogs -

  5. OGmtaOwoXXAfwJRB

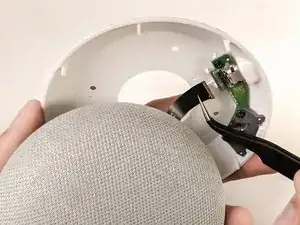

    • Pull the ribbon cable off.

Conclusion

To reassemble your device, follow these instructions in reverse order.
