Google Home Mute Button Switch Replacement

Written By: Gabe Hyun
  • Comments: 0
Google Home Mute Button Switch Replacement

Difficulty

Easy

Steps

4

Time Required

10 - 15 minutes

Introduction

This guide will teach you how to replace a faulty mute button switch in your Google Home with a new one.

  1. aeirX6JvkYeeLgAW
    aeirX6JvkYeeLgAW
    SEkPQiU1kxE4HrWp
    Asb3FAkpMM5fTVwQ

    • Removing the lid too quickly could cause you to tear the interconnect cable that attaches the base to the top of the lid.

    • Pull off the Google Home’s magnetically attached base and set it aside.

    • Using a Torx T6 screwdriver head, unscrew the four 1.7mm Torx screws deep in the speaker recess so that you can remove the lid.

    • After all four screws are out, pop the lid off the device to open the capsule.

  2. DJaQwHUjYN4oolWv

    • Carefully remove the interconnect cable using a pair of tweezers.

  3. 1gJfU6PNKpcmWJCv
    1gJfU6PNKpcmWJCv
    B3ANxNZAgBiGeESG

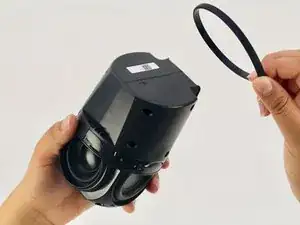

    • Remove the ‘O-ring’ that wraps around the device holding the switch panel in place.

  4. xvKbEEXSrdT5rAMo
    xvKbEEXSrdT5rAMo
    LFRNahnDUMrUlBtD

    • Using a Torx T6 screwdriver head, unscrew the four black 1.7mm Torx screws.

    • Remove the panel and the mute button switch. If done correctly you should now be able to see the device’s guitar-shaped motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
