Gourmia GAF536 Power Cord Replacement

Written By: Cameron
  • Comments: 1
Gourmia GAF536 Power Cord Replacement

Difficulty

Easy

Steps

4

Time Required

3 - 4 minutes

Introduction

If your Gourmia GAF536 air fryer is plugged in and not turning on, a faulty power cord could be the cause. This guide will provide a nice and easy way to replace your power cord. There are no complicated tools required for this project.

  1. EIhaxDW42hWBq6T3

    • Unscrew two 14mm x 6mm screws on bottom of air fryer with Ph 02 screwdriver.

    • Make sure air fryer is unplugged.

  2. vIB5WDkwaYAOkiA5
    vIB5WDkwaYAOkiA5
    lwqDlbPp5uQJTUmO

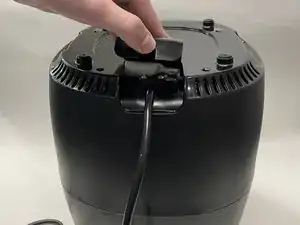

    • Once both screws are out, the cover piece can be removed.

  3. x6rVDeYdlH1RIAwZ

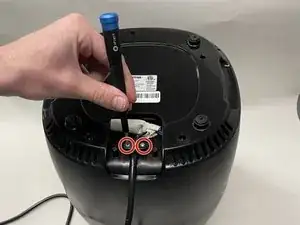

    • Unscrew the two 14mm x 5 mm screws covering the wire.

  4. ePXXnvMICMBxcrLk

    • Use a pair of scissors, cut off zip ties around wire.

    • Be sure to use electrical scissors, cut red and blue wires.

    • The faulty power chord can then be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Cameron

Member since: 08/09/23

345 Reputation

One comment

Why no photo of the revealed cable connection?
