Grundig TK125 Transport Belts Replacement

Written By: Joenymus
  • Comments: 0
Grundig TK125 Transport Belts Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

These 6 steps explain to remove bottom and top covers.. at the bottom side remove the plate (2 screws) which hold the flywheel axle.. this is your opening to replace the 2 belts, forst the biggest belt for the flywheel, the the midsize belt for the drive.. all good..

  1. EftUYHqYWrE4FRIl
    EftUYHqYWrE4FRIl
    UkuIMsDFWt4GJB2a

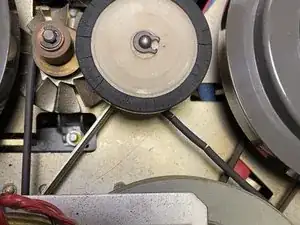

    • I have ordered a new belt set on aliepxress, to be continued once i received them

  2. DsyOvZ6QcIJ5mtlh

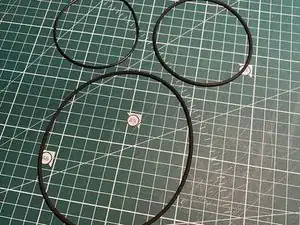

    • These are the 3 belts needed (if all) for the TK125, the biggest is needed for the flywheel, the midsize of for the drive and the smallest of for the counter.

  3. W2wOUlJVUGK6mNyV
    W2wOUlJVUGK6mNyV
    qXXLRIwNT6msuLbK

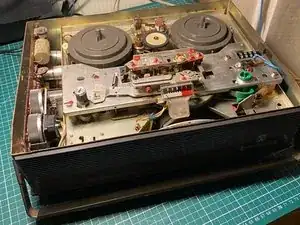

    • Now remove the bottom and the top covers so you can reach both sides of the recorder

  4. 3AFVVywHAjJpbPAt
    3AFVVywHAjJpbPAt
    oYeNZgYqCr3vExDr

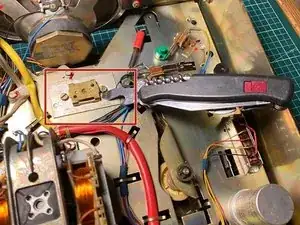

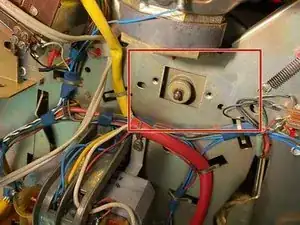

    • Remove the flywheel axle restplate, here is your opening to replace both the belts

  5. QhNuVPwxpWnFgjYO

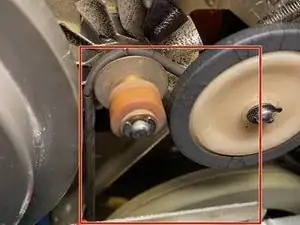

    • first you place the large flywheel belt, then you place the midsize belt for the drive

  6. JShVmcQMoqyVLh5y

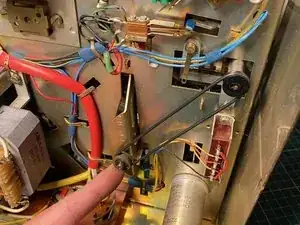

    • this is the small belt for the counter

Conclusion

To reassemble your device, follow these instructions in reverse order.
