HMD Pulse+ Battery Replacement

Written By: Spencer Day
  • Comments: 0
HMD Pulse+ Battery Replacement

Difficulty

Moderate

Steps

16

Time Required

30 - 45 minutes

Introduction

Follow this guide to replace a dead or worn-out battery in your HMD Pulse+ smartphone.

Your phone's lithium-ion battery has a limited lifespan. If your phone dies quickly and doesn't hold a charge, it may be time to replace the battery.

If your battery is swollen, take appropriate precautions.

  1. qZX5Gf4PTPr41EU3

    • Let your phone's battery drain below 25% before starting this repair. A charged lithium‑ion battery may catch fire if damaged.

    • Unplug all cables from your phone and completely power it down.

  2. KAACUtBIsByVYRhD
    KAACUtBIsByVYRhD
    AcfgnR5R6CdvpFWV
    Dkxj2Savvn2HTikZ

    • Firmly press a SIM eject tool, bit, or straightened paper clip into the SIM card tray hole on the left edge of your phone until the tray ejects.

    • Remove the SIM card tray.

    • During reassembly, use the tray's markings to orient and reinsert it properly.

  3. jpl5THGDCMTptlho
    jpl5THGDCMTptlho
    uR3TX63PXbioRCJZ

    • Insert the tip of an opening pick between the back cover and frame, at the SIM card tray cutout.

  4. sc2CnCMwFdLLHKb2
    sc2CnCMwFdLLHKb2
    J1slTiJr2LejfYHw
    i1cOCsYavY2Wa4et

    • Position the opening pick straight down and slide it along the left edge to begin unclipping the back cover.

  5. bArAiMlMxrVZ4NGE
    bArAiMlMxrVZ4NGE
    rVFQhMSunkTesEig
    iQcxdc3R5TctN1Gp

    • Continue sliding the pick around the perimeter of your phone until the back cover is fully unclipped.

    • The corners can be tricky to unclip and may take some force. If you're having trouble, try prying up with the pick.

    • Don't try to fully remove the cover yet, as a delicate cable still connects it to your phone.

  6. hYQfeFLbxCodxGYJ
    hYQfeFLbxCodxGYJ
    AhlaDbphfMxiAEGd
    XIFMWcOSliejJOnN

    • Carefully flip your phone over so the back cover is facing up.

    • Lift the back cover off the frame and flip it over the left edge of your phone, laying the cover flat on your work surface.

    • Be very careful not to strain the back cover's delicate cable.

    • During reassembly, place the back cover onto the frame and firmly squeeze around the perimeter to reengage all the clips.

  7. OQklXUC4SLaJTZwB
    OQklXUC4SLaJTZwB
    nWHilWycIshpVfFs

    • Be very careful not to puncture the battery with your screwdriver.

    • Use a Phillips screwdriver to remove the nine 3.6 mm‑long screws securing the motherboard cover.

    • The screw near the center of the top edge is covered by a sticker. Pierce through it with your screwdriver, or use tweezers to remove it.

  8. KLLl6NLL5vpuHFbR
    KLLl6NLL5vpuHFbR
    MAuNT1EUmdCeKXPZ
    isjCXyGDBwIIAKFZ

    • Insert an opening pick between the right edge of the motherboard cover and frame.

    • Twist the pick to fully unclip the cover.

  9. OF5OT5GYTOoXqXT4
    OF5OT5GYTOoXqXT4
    Bhs5YiILdqWMIqtN

    • Remove the motherboard shield and its connected graphite sheet.

    • During reassembly, set the motherboard shield into place and press down firmly around the perimeter to reengage the clips.

  10. klMGnvivn2xa4txI
    klMGnvivn2xa4txI
    iRVAsmiqDH2DZcHU

    • Use the flat end of a spudger to pry up and disconnect the battery press connector from the bottom edge of the motherboard.

    • To reconnect these type of connectors, align the connector over its socket and press down with your fingertip—first at one side, then the other—until it clicks into place. Don't try to force the connector into place, or you may permanently damage it.

  11. wSRhFJpItNtO3R4x
    wSRhFJpItNtO3R4x
    6AckuLlJ6jQQLl3X

    • Use the flat end of a spudger to pry up and disconnect the back cover press connector from the bottom edge of the motherboard.

  12. HauvTDUqMpQKcwWa

    • Remove the back cover.

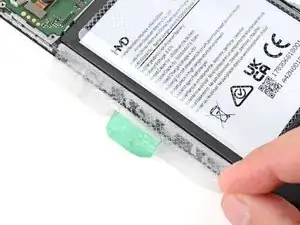

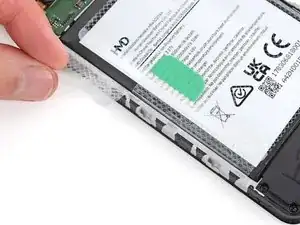

  13. VBwfJmfpw3fwokYu
    VBwfJmfpw3fwokYu
    XUrblf4fBt3RFIEh
    WFGNuSGnwlE6mDjb

    • Be very careful not to bend, crease, or puncture the battery during the next few steps. A damaged battery can leak dangerous chemicals and catch fire.

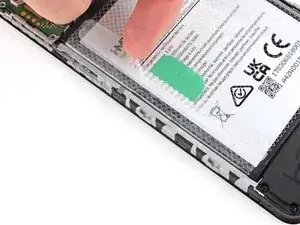

    • Use your fingers to carefully peel the three plastic tabs from the left side of the battery.

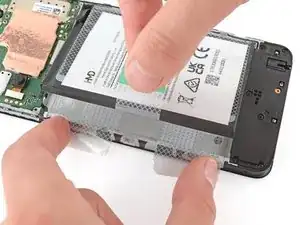

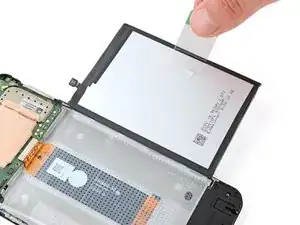

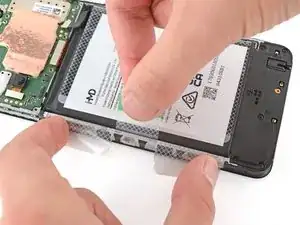

  14. vFsL6iUPE1dWWCDR
    vFsL6iUPE1dWWCDR
    KZnAyFQLmBsrSsAE
    CccBWJibdR5rFUOu

    • With one hand, fold the clear outer tabs out of the way of the battery and firmly hold them down to secure the frame.

    • If you're having trouble with the tabs, you can fold them under the phone and tape them to the screen.

    • With your free hand, grip the green center pull tab and pull straight up to fully separate the battery adhesive.

    • Lay the battery over the right edge of your phone.

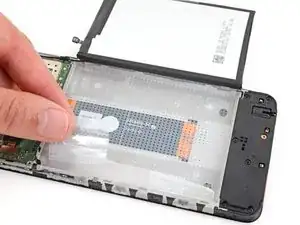

  15. caIUiQiZm1Ytlbmj
    caIUiQiZm1Ytlbmj
    r2GFBngNWaNDnyMi

    • Use your fingers to peel the battery's plastic film from the frame.

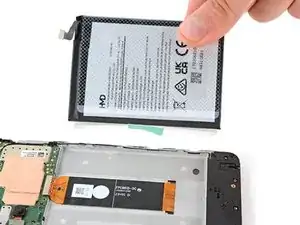

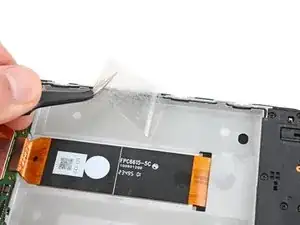

  16. PKOmFWC2dWusOxnD
    PKOmFWC2dWusOxnD
    uiEBoGLEsGXYYxZb

    • Remove the battery and its film.

    • During reassembly:

    • Never reuse a deformed or damaged battery, as it's a potential safety hazard. Replace it with a new battery.

    • Use a spudger and tweezers to peel up and remove the two pieces of battery adhesive.

    • Apply the new adhesive to the frame and remove the plastic liners.

    • Firmly press the battery into its recess so the cable is on the top edge and the three tabs are on the left edge.

Conclusion

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after reassembling your phone.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
