HP 14-an012nr Fan Replacement

Written By: Christopher Brackeen
  • Comments: 0
HP 14-an012nr Fan Replacement

Difficulty

Moderate

Steps

4

Time Required

10 minutes

Introduction

If your fan starts getting louder and your laptop starts to overheat it could be that you need to replace your fan. It's a simple replacement and would only need two tools a #1 Philip screwdriver and prying tools.

  1. CHmytvxrBDMiVuWD
    CHmytvxrBDMiVuWD
    QkoN5hW63sHI2Ljq
    UDtcp5IKvocgFLNH

    • Remove the battery by sliding both sliders inward.

  2. sQKcfW1YUKATrFU4
    sQKcfW1YUKATrFU4
    qGCAXaufRXi2ophh
    HdBLdDmhndXQ3pU6

    • Remove the eight 6 mm screws from the back panel using a Phillips #1 screwdriver.

    • Remove the rubber pads from the upper corners of the laptop to reveal two screws on each side.

    • Remove six 4 mm screws using a Phillips #1 screwdriver.

    • Pry the back panel off using an opening tool, working your way around the edges.

  3. vMaa3a3fKVLEPwBw
    vMaa3a3fKVLEPwBw
    hsmvNSExhGxWyn4V
    gJUQpxNpCIs3g3ZC

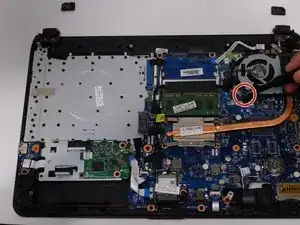

    • Remove the two 3 mm screws that secure the fan.

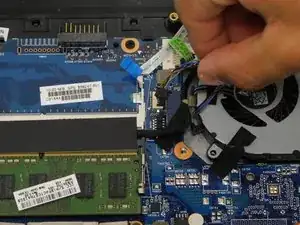

    • Gently disconnect the power cable; it can tear easily.

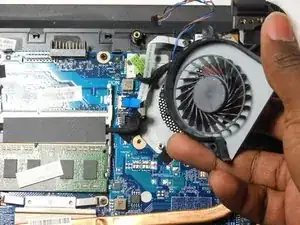

    • Remove the fan.

  4. M5SRBu5ygBTm2AKD
    M5SRBu5ygBTm2AKD
    qQPqJNX3CASoWJDL

    • Clean the area where the fan was located with a clean soft cloth or cotton swab.

    • Once cleaned and free of dust place the new fan and follow the steps in reverse to rebuild the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
