HP 15-ay091ms Fan Replacement

Written By: Gabriel
  • Comments: 0
HP 15-ay091ms Fan Replacement

Difficulty

Easy

Steps

3

Time Required

15 minutes

Introduction

This guide will aid users in removing and replacing the fan of their HP 15-ay091ms Device. A malfunctioning fan can damage the device over time; a working fan helps to avoid overheating. Removal and replacement of the fan is an easy fix users can do to protect the longevity of their device.

  1. 3QweAaQSXJWjqsAZ
    3QweAaQSXJWjqsAZ
    HQChKLR5PF1BtYDN

    • Ensure the device is powered off and is disconnected from any AC power supply.

    • Push the latches on either side of the battery down and outward.

    • This unlatches the battery allowing for easy removal.

    • Remove the battery.

  2. 4vIbb6kkAcHJIVQN
    4vIbb6kkAcHJIVQN
    J1j6gBg1gxGNqEtB
    IWmv1EXVG5tETJMb

    • Remove the screws from the bottom panel using a JIS #0 screwdriver.

    • Use the iFixit opening pick to lift the back cover from the device.

    • It is helpful to get an opening in one spot of the back cover and carry that opening around the device.

  3. 1XdgdOrnQtUxFtGP
    1XdgdOrnQtUxFtGP
    cLwDC1jUW4TCDa2p
    aRux5E3sAysdOmcT

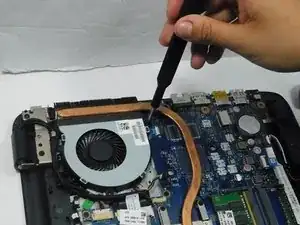

    • Remove the screws holding the fan in place using a JIS #0 screwdriver.

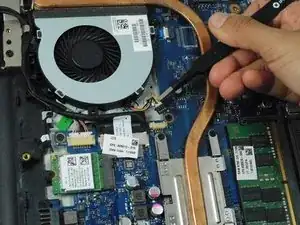

    • Use a pair of tweezers to disconnect the wiring that powers the fan.

    • Remove the fan.

Conclusion

To reassemble your device, follow these instructions in reverse order.
