HP Compaq 6710b Heat Sink Replacement

Written By: Khulan Orgil
  • Comments: 5
HP Compaq 6710b Heat Sink Replacement

Difficulty

Moderate

Steps

12

Time Required

20 minutes

Introduction

You will need to take out the keyboard as a part of replacing the heat sink. Know the steps to Keyboard Replacement before starting on this.

  1. OUHfMhZEuMAvErGh

    • Turn off your computer! Taking out the battery while it's still on is dangerous!

    • Flip the laptop over to the back.

    • Using two hands, push on the tabs while gently taking out the battery.

  2. MVbTgmKNvoWfJgPR
    MVbTgmKNvoWfJgPR
    AIOWYgGP2OcHuaxZ
    yL6Rf2CymtfW2ccb

    • Turn off computer before starting.

    • Flip to the backside of the laptop.

    • Using a Phillips #1 screwdriver, unscrew the 5mm screw and take off the shown cover.

    • Using the same screwdriver, unscrew the 8mm screws.

    • The screws may not completely fall out of the laptop, just ensure they are unscrewed as far as they will go.

  3. PBfBtmpkyyOmxQwH

    • Flip over the laptop to the top side, and open the laptop.

    • Slide the locking tabs down using a blue plastic opening tool or your fingernail.

  4. D3gBr23EJkFBAmHl
    D3gBr23EJkFBAmHl
    PIiINIDGYsZF1vWq

    • Using the plastic prying tool, lift the keyboard gently towards you.

    • Don't take the keyboard completely off because it is still attached with a ribbon cable to the computer.

  5. dggcIjE4nJZB3gkk

    • Pull up on both sides of the black locking tab of the connector.

    • The keyboard should now be free of the computer.

  6. QC25fZ4dADDXKvlA

    • Put a finger under each side of the plastic lock on the ribbon cable and pull up.

    Reben pack Tut Gaya hai

    Gopal Ji -

    Reben cabal tuta huahai

    Gopal Ji -

  7. 3pl3knEBeZFpjD5x
    3pl3knEBeZFpjD5x
    lEpghLmgQhk5fYoe
    ESMna1qXerr1qOJK

    • Using a flathead screwdriver, get under each plastic hinge cover until they pop.

    • Lift the right edge of plastic strip covering the power button and gently pull it up until the whole strip comes free.

  8. rFfFdydu16gllgyv

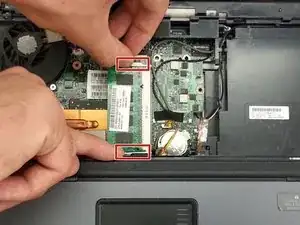

    • Using two fingers, open the prongs holding the RAM

    • Then slide the RAM out from the socket

  9. fUj2Yi1sPbtbKaea

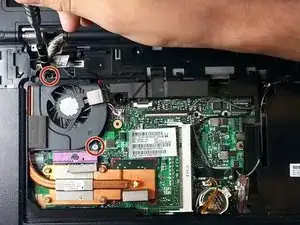

    • Using a Phillips #1 screwdriver, unscrew the two 7mm screws on the top and bottom of the fan.

  10. bYyPD5dccfP1PSqC
    bYyPD5dccfP1PSqC
    cIPJxxCOUVWfPqT3
    jJeThXADOIVLcgnF

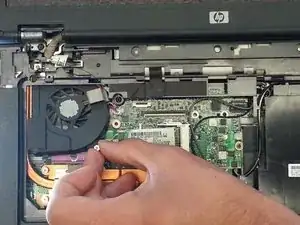

    • Using two fingers, pull out the fan power connector.

    • To take out the fan, lift the bottom of the fan and take it out at an angle.

  11. XrR4SASYWXL2NO4T

    • Using the Phillips #1 screwdriver, unscrew the four screws on the copper plate.

    • The screws on the copper plate do not come all the way out.

  12. KfutDSRyRDmyeHHn
    KfutDSRyRDmyeHHn
    EM3qpSehWPYREQyg

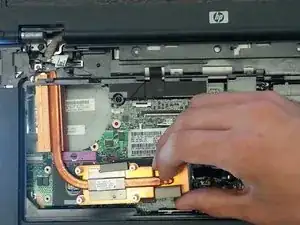

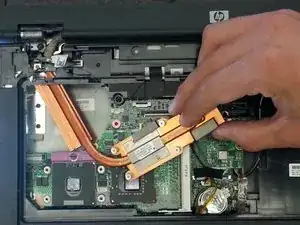

    • Rotate the copper plate heat sink to slide it out.

    • Do not force the heat sink because it's easy to damage.

Conclusion

To reassemble your device, follow these instructions in reverse order.
