HP Compaq 6710b Wireless Card Replacement

Written By: Khulan Orgil
  • Comments: 0
HP Compaq 6710b Wireless Card Replacement

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

Make sure your computer is off and battery is out before attempting to replace your wireless adaptor.

  1. OUHfMhZEuMAvErGh

    • Turn off your computer! Taking out the battery while it's still on is dangerous!

    • Flip the laptop over to the back.

    • Using two hands, push on the tabs while gently taking out the battery.

  2. UcDb5PKOcOfocXLE
    UcDb5PKOcOfocXLE
    O2uSOxRRLQYaKYo6

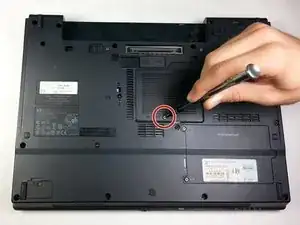

    • Make sure the computer is off.

    • Using a Phillips #1, unscrew the 5mm screw on the bottom of the laptop

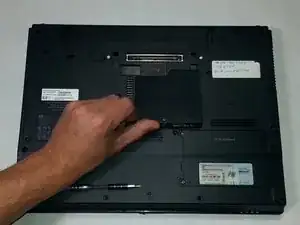

    • Remove the back cover plate.

    • The cover has popping tabs so it might require a small amount of force to remove.

  3. xFeQ6YIqq5PIxEbG
    xFeQ6YIqq5PIxEbG
    nSrirHOMMwOhNxNB

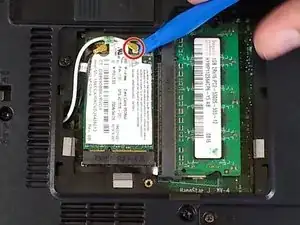

    • Using a blue plastic prying tool, gently pry off the 2 connectors.

    • The black cable goes on the connection closer to where the cables originate, while the white cable goes on the farther connection.

  4. IArqYq6mT1HjUCbG
    IArqYq6mT1HjUCbG
    QKIKFRVkfPaUclhK

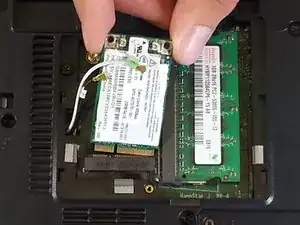

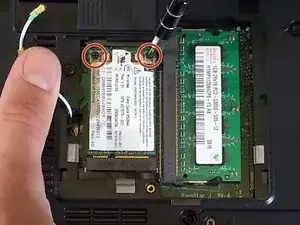

    • Using the Phillips #1 screwdriver, unscrew the 2 3mm screws.

    • Adaptor is spring-loaded.

    • You can now take out the adaptor.

Conclusion

To reassemble your device, follow these instructions in reverse order.
