HP Compaq Presario V6000 Trackpad Replacement

Written By: adam
  • Comments: 0
HP Compaq Presario V6000 Trackpad Replacement

Difficulty

Moderate

Steps

8

Time Required

No estimate

Introduction

This guide demonstrates how to remove and replace and HP Compaq Presario V6000 trackpad in order to preserve the function of the device.

  1. QVhnxhHdCtXb6pxZ

    • Use the metal spudger to gently remove the plastic plate from the rest of the top panel.

    • Be careful not to break the plastic tabs connecting the two top panels.

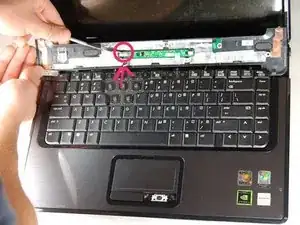

  2. iK56pOVNSj2EPe41

    • Separate the connection of the top piece from the board.

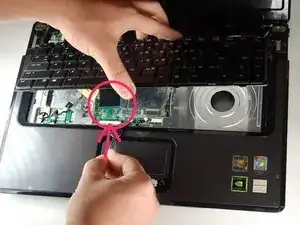

  3. fxTkiZPJNQlVY6UT

    • Remove the connection from the keyboard to its housing.

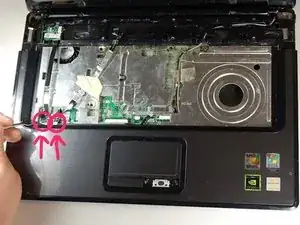

  4. C5KPURaMDgxREGKl

    • Separate the power connections.

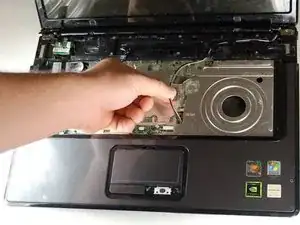

  5. Eih3xIBaSZX3aiFs

    • Unravel the wire.

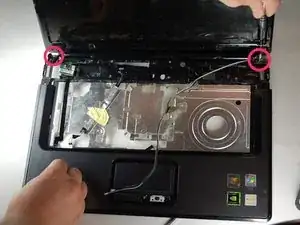

  6. d1HGHtHNTOCQJ2P2

    • Remove the screws connecting the plastic housing to the screen.

    • Use caution when removing the last screen. Do no damage the screen.

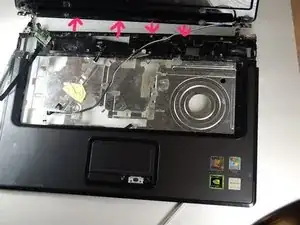

  7. UQml54IcAJQQQn1W

    • Make sure to grip the screen tightly and separate the top and bottom.

  8. JDOAIqXbidCVkErH
    JDOAIqXbidCVkErH

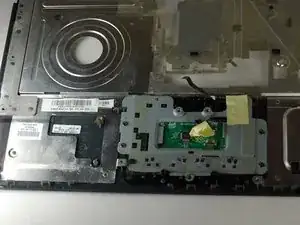

    Yg5pg5g5VUx224IR

    • Remove the screws that hold the track pad in place.

    • Remove the track pad.

Conclusion

To reassemble your device, follow these instructions in reverse order.
