HP DV7-4285DX LCD Replacement

Written By: Patrick
  • Comments: 1
HP DV7-4285DX LCD Replacement

Difficulty

Moderate

Steps

19

Time Required

1 hour

Introduction

This guide will show how to disassemble the laptop and get to the display assembly to replace LCD screen.

  1. HPHimGYAFVb1LYpF

    • Make sure laptop is shutdown and unplugged from power adapter.

    • Slide the battery release latch to the left and remove the battery.

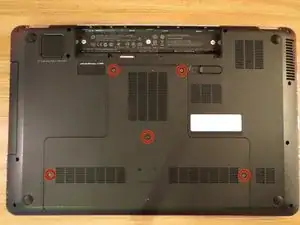

  2. oabBgrb4E2ZdKBPu
    oabBgrb4E2ZdKBPu
    vODvX2MVYW5UVngZ
    GtEjrYxEgWECNT3I

    • Unscrew the five screws holding the bottom cover for accessing the RAM, hard drive and wifi card.

    • Five Phillips #1

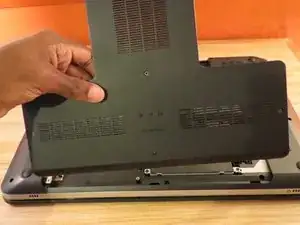

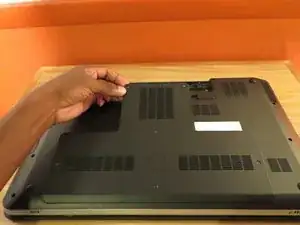

    • When removing the cover, start from the top edge and lift up.

    • Remove cover.

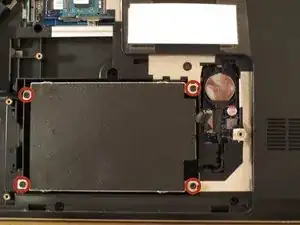

  3. Jn5loKBwXTmprvm2
    Jn5loKBwXTmprvm2
    QIa5lJVYGI14BpwU

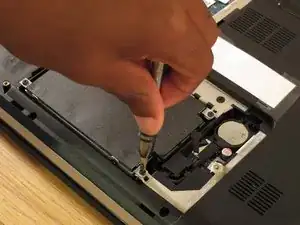

    • Remove the four screws holding the hard drive.

    • Four Phillips #1

  4. I6JlSFxpgAknwvwF
    I6JlSFxpgAknwvwF
    oUSBebB64gpIBRX2

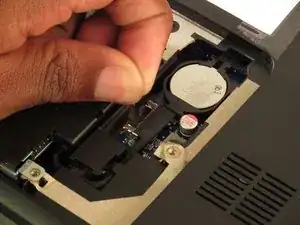

    • Unplug the SATA connection using the black pull tab.

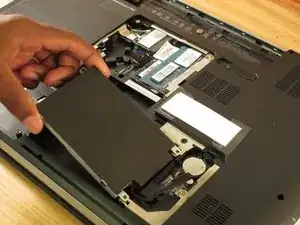

    • Remove hard drive

  5. VudMBRAJE5ebvpyE

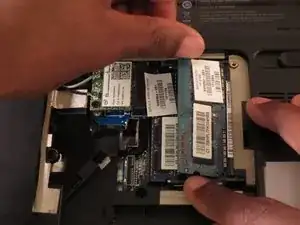

    • Remove RAM by pushing the locking clips outwards.

  6. JgBCNuTbCvQ2Lvq1
    JgBCNuTbCvQ2Lvq1
    WplxyFtXHBOgMrCc
    VawE4xQBiHB3JU2B

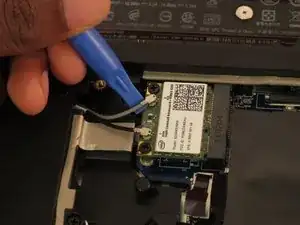

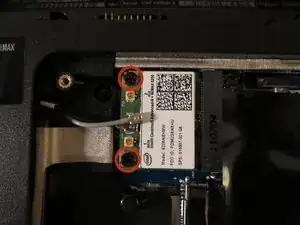

    • Use the edge of a plastic opening tool to pry the wifi antenna cable up from its socket on the wireless card.

    • Remove two screws from wireless card.

    • Two Phillips #1

  7. 33VDgsdATbSohpgb
    33VDgsdATbSohpgb
    DUEHefkkK4TpTJHB
    AdSYhDbfmPsZR3LY

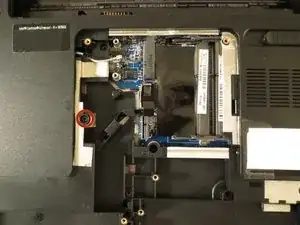

    • Remove the one screw holding the optical drive.

    • One Phillips #1

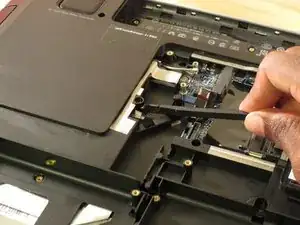

    • Use a spudger to push on the metal tab below where the screw was. This should disconnect the optical drive from the SATA connector.

    • Remove optical drive.

  8. fa6IBxCUmrK6vZy5
    fa6IBxCUmrK6vZy5
    m2RBBsRY6QvRvI2u
    IM5AgSamJeulA5Cq

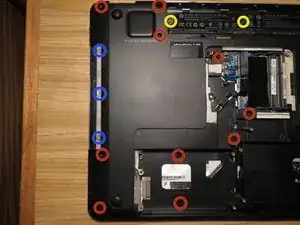

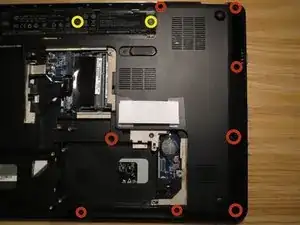

    • Remove the 26 screws on the bottom.

    • 20 Phillips #1

    • Three Phillips #0

    • Three Phillips #00

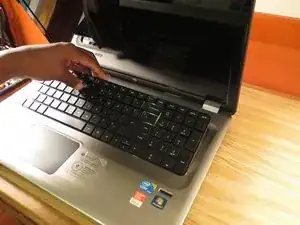

  9. YgNGhCDD2oQ2FnnA
    YgNGhCDD2oQ2FnnA
    cDDxGcedGBbOJiYJ
    1MR3ZrpkPhnRZWJD

    • To the left of the battery connector is a keyboard release latch. Use a spudger to release the keyboard.

    • You may have to open the laptop some to keep the keyboard from re-latching.

    • Once freed, lift the keyboard up from the top.

    • Be careful not to damage or tear the ribbon cable.

    • Use the edge of a plastic opening tool to carefully flip up the retaining flap on the keyboard ZIF socket.

    • Remove keyboard.

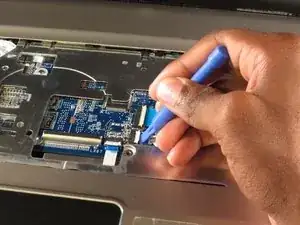

  10. SZJHlsgFV2PtjKyg
    SZJHlsgFV2PtjKyg
    ODrMo6k1ISxHISWW
    UdPydrJhJO5RnCVA

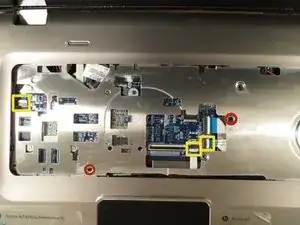

    • Remove the two screws.

    • Two Phillips #1

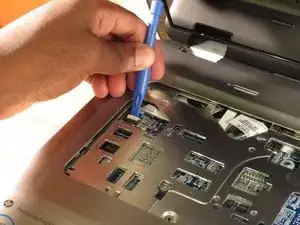

    • Use the edge of a plastic opening tool to carefully flip up the retaining flaps on the three ZIF sockets.

  11. cSpeqdToJbeayX4J
    cSpeqdToJbeayX4J
    kDH6qPwYPgIpenAN
    E5x6adkuc1wPdPdg

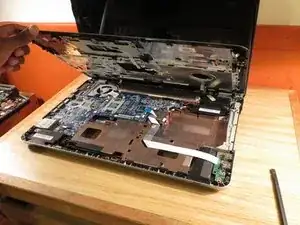

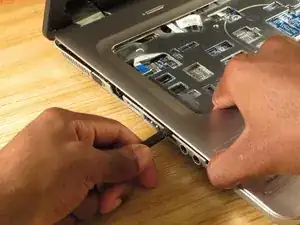

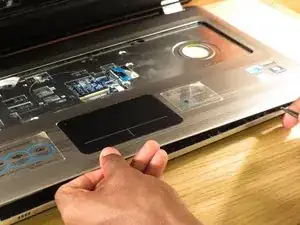

    • Starting on the left side, use a spudger to pry the cover up. Work your way around to the right side.

    • Remove cover.

  12. WnEybdJineSrQ4es
    WnEybdJineSrQ4es
    KFi2NJZubO1NfdFD

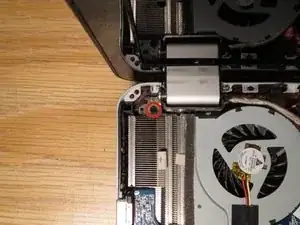

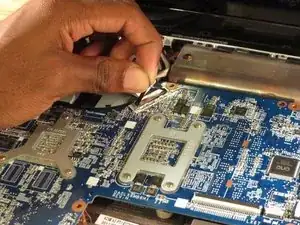

    • Remove the screw on the left side holding the lid hinge.

    • One Phillips #1

    • Use the black pull tab to remove the LCD connector.

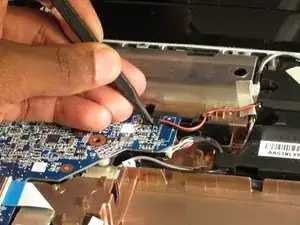

  13. BDRkHVZuXIuvxcJQ
    BDRkHVZuXIuvxcJQ
    LxQ3GiIYraSD1XOj
    RQDODfrMBMYGDWrS

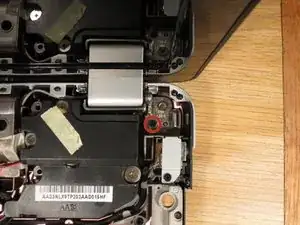

    • Remove the screw on the right side holding the lid hinge.

    • One Phillips #1

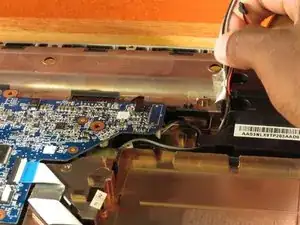

    • Use a spudger to disconnect the speaker wire.

    • Carefully pull the wifi antenna wires out from the bottom case.

    • Remove lid.

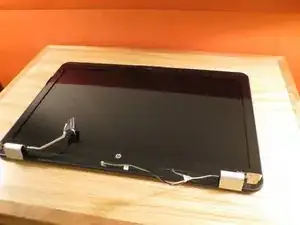

  14. gfaspXRVJJFRBbMN
    gfaspXRVJJFRBbMN
    gV6F2oGUKtlKJsGT
    nNGSBFxnxMXQpRfw

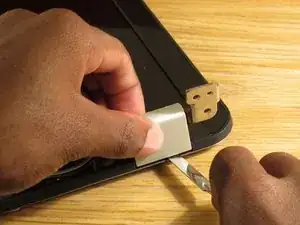

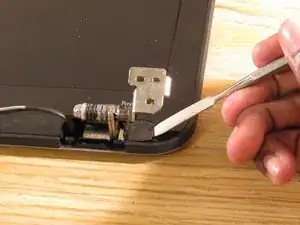

    • Using a metal spudger remove the two hinge covers.

    • Use a metal spudger to remove the two screw covers.

  15. YCJOHDoUrJcJcL5D
    YCJOHDoUrJcJcL5D
    y4uhsbTKvSTFUGFQ
    eNojPC6rKu5wFIxE

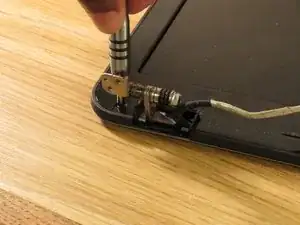

    • Remove the two Phillips #1 screws that were under the covers.

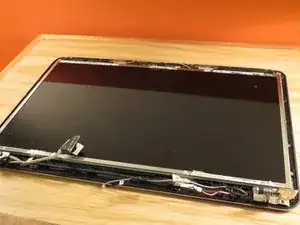

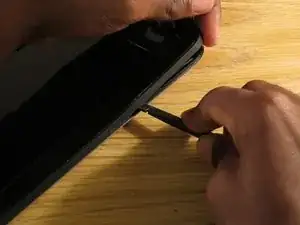

    • Starting on the left side, use a spudger to pry the bezel up.

    • Work your way around and remove the bezel.

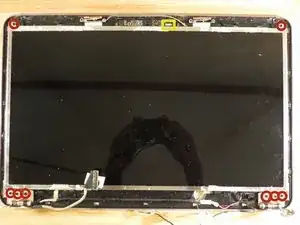

  16. IXVIZkjmZQQIc2DD
    IXVIZkjmZQQIc2DD
    EZEPHSHIoXspFydV
    laV5LuwROQveTMRy

    • Remove the eight screws holding the LCD panel.

    • Eight Phillips #1

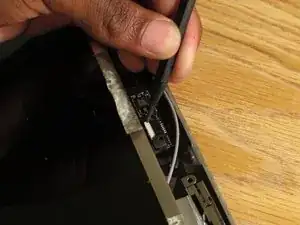

    • Use a spudger to disconnect the webcam connector.

    • Lift up the LCD panel.

    • The webcam wire is attached to the back of the panel. Carefully peel it off the panel.

  17. h5WGBHTBTwdoiPHS

    • Use a sudger to disconnect the wire from the LCD panel.

    • Remove LCD panel.

  18. 4O2YbrMlctv4nSV3
    4O2YbrMlctv4nSV3
    TiwnAOKbsRCqJoy1
    AhQpV16khwkDpYqo

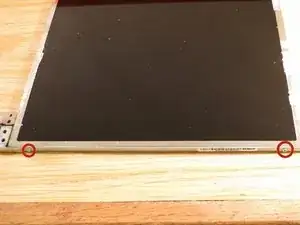

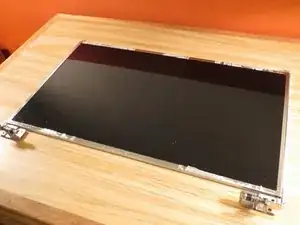

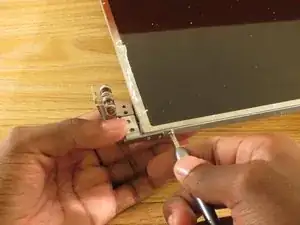

    • Remove the four screws (two on each side) holding the hinges on the sides.

    • Four Phillips #1 (two on each side)

    • Remove the hinges.

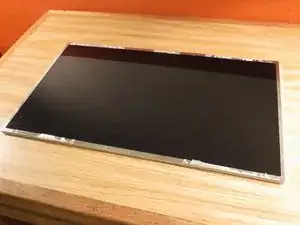

  19. xwfsvAyjftCErkwV

    • LCD remains.

    • To reassemble, follow these instructions in reverse order.

Conclusion

To reassemble your device, follow these instructions in reverse order.
