HP ENVY 5530 Paper Tray Replacement

Written By: Elizabeth Surface
  • Comments: 1
HP ENVY 5530 Paper Tray Replacement

Difficulty

Easy

Steps

13

Time Required

5 minutes

Introduction

Paper trays help align papers once printed. Over time, the paper tray may lock itself or break. Ensure you have unplugged your device before you begin this repair.

  1. 3kAMSDIlMmH56ZID
    3kAMSDIlMmH56ZID
    m4cG6ZbpRFEEQ3Rp

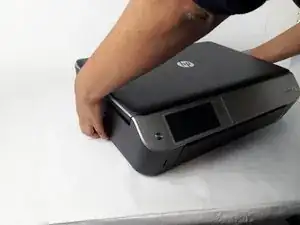

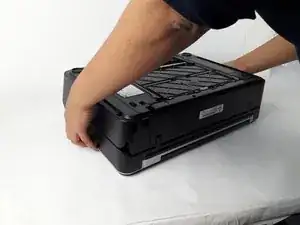

    • Grab both sides of the printer and flip it away from you so the bottom is facing up.

  2. WyuPDVa3XUNKdWYm

    • Locate the 13mm TR10 Torx screws on the left side of the paper tray.

  3. lKZsByIq5bFNkpCr
    lKZsByIq5bFNkpCr
    fgivYR4IkvsNpPOS

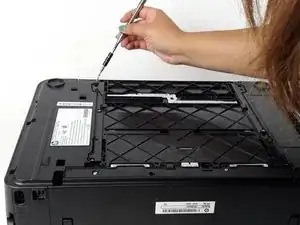

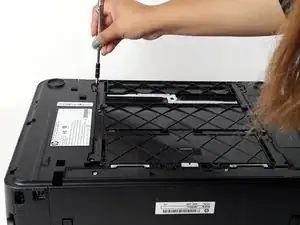

    • Unscrew and remove the 13mm TR10 Torx Security screw, starting with the farthest screw on the left

  4. UeSuSMJV4HHR5Zaw
    UeSuSMJV4HHR5Zaw
    mnSrYnniZ3iUWQcN

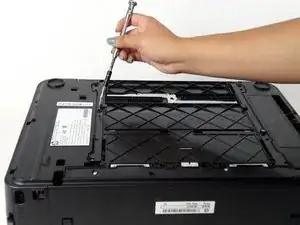

    • Locate and remove middle 13mm TR10 Torx Security screw using a Torx screwdriver.

  5. flIWqjp2S2suXSRK
    flIWqjp2S2suXSRK
    HopCMlHGJlBWQJxg

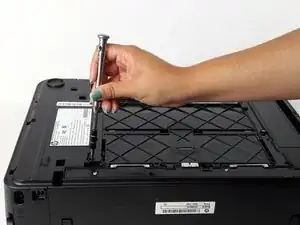

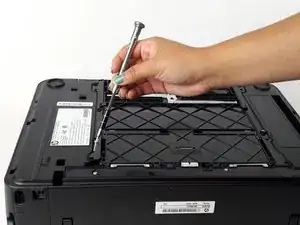

    • Locate and remove the last 13mm TR10 Torx Security screw.

  6. RpG62Y6grIsZ1AsP
    RpG62Y6grIsZ1AsP
    kcp1eSL11NruV2KL

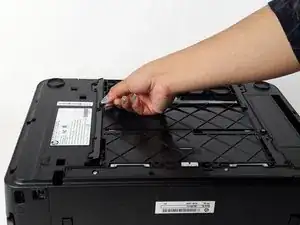

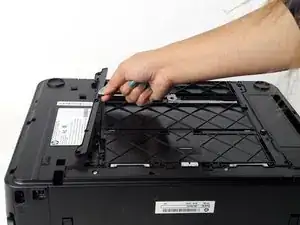

    • Locate the side tab and lift up to remove.

  7. RV2IiAIMrHPqcSct

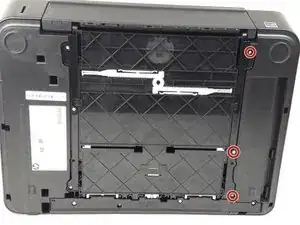

    • Locate the three 13mm TR10 Torx Security screws on the right side panel.

  8. RcBSL1PBHNE2QGIS
    RcBSL1PBHNE2QGIS
    qVm25VKP3vqruBAC

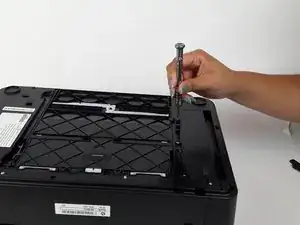

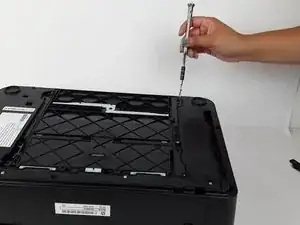

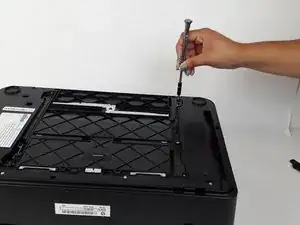

    • Locate and remove the farthest 13mm TR10 Torx Security screw.

  9. yDVw2TVXfcv4jfRd
    yDVw2TVXfcv4jfRd
    DxeOHvLWJpYJaRGw

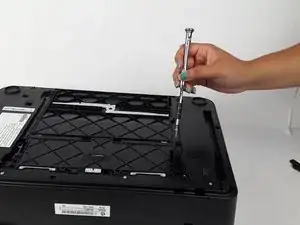

    • Locate middle 13mm TR10 Torx Security screw and remove it.

  10. 2KkkGp6Bp6hFhjCR
    2KkkGp6Bp6hFhjCR
    MoIxdMIAsJBLHnLs

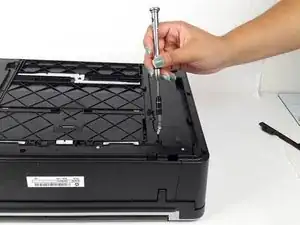

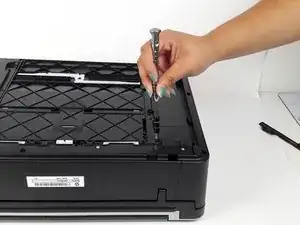

    • Locate last 13mm TR10 Torx Security screw and remove it.

  11. 4kDCBFnD2VmVhyhJ
    4kDCBFnD2VmVhyhJ
    Q46IbUg1qGYrj4L5

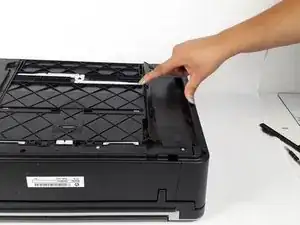

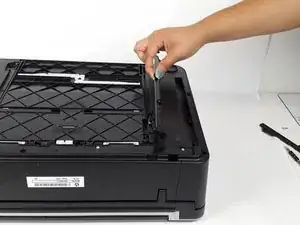

    • Locate tab on the right side panel and lift to remove it.

  12. kw53p6gt6oHetfmT

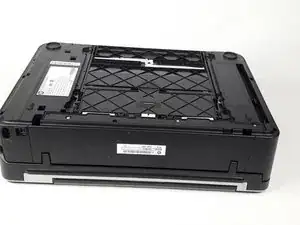

    • The back should look like this.

  13. JclWrJXbEOLRjw6i
    JclWrJXbEOLRjw6i
    Llohpbk2CRvgmxDi
    4dxlNuIaH34YqaTE

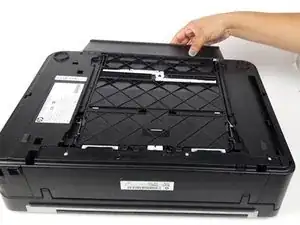

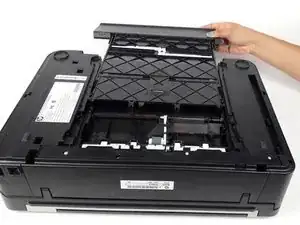

    • Remove paper tray by pulling it out and away from the printer.

    • Be cautious of jumping springs once pulling out the paper tray.

    If the spring were to jump, how would you put them back? Where exactly did they jump from?

    Jamie Mitchell -

Conclusion

To reassemble your device, follow these instructions in reverse order.
