Introduction
How to replace the battery of a HP EliteBook 755 G5 laptop. The images and information in this guide were taken from this computer's service manual.
Tools
Parts
-

                  -
            Turn off the computer. If you are unsure whether the computer is in Hibernation, turn the computer on, and then shut it down through the operating system.
-
            Disconnect the power from the computer by unplugging the power cord from the computer.
-
            Disconnect all external devices from the computer.

-

-

                  -
            Turn the computer upside down on a flat surface.
-

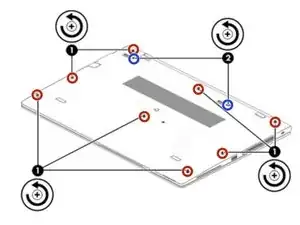

            Loosen the eight captive screws that secure the bottom cover.
-
            Loosen the two inset captive screws that secure the bottom cover.
-
            Starting under the middle of the display, pry and lift the bottom cover off the computer.

-

To replace the battery & reassemble your device, follow these instructions in reverse order.
