HP Elitebook 2740p Hard Drive Replacement

Written By: Cameron Whittle
  • Comments: 1
HP Elitebook 2740p Hard Drive Replacement

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

The computers hard drive is where all of its data is stored and kept when the computer is turned off. Upgrading it to a larger or faster HDD or SSD is very important in keeping your computer running properly. This simple guide shows how to easily access the HDD bay within the laptop.

  1. sVETYXpY1jjL5FV6

    • Place the laptop face down in front of you.

    • Use a Phillips #0 screwdriver to remove the three 3 mm screws from the back of the case.

    • Remove the back panel.

  2. DwKuVXeiqh3QbchL
    DwKuVXeiqh3QbchL
    OjZtfMQOSFEhqgoS
    w4VJwAFhnmmeWju5

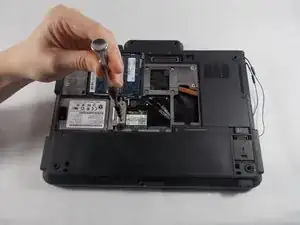

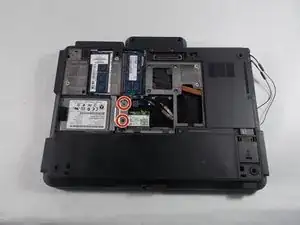

    • Use a Phillips #0 screwdriver to remove the two 3 mm screws from the small metal HDD bracket.

    • Lift up on the small bracket and pull it off.

  3. sDPLdPZnJjBNV3HK
    sDPLdPZnJjBNV3HK
    WuMpeCFLboLj1lq5
    KhHrqi4INqjFvvOd

    • Pull out the hard drive and the small rubber sleigh that holds it.

    • Pull the rubber sleigh off of the hard drive.

Conclusion

To reassemble your device, follow these instructions in reverse order.
