HP Envy 15-u001dx Battery Replacement

Written By: Dakota Presley
  • Comments: 0
HP Envy 15-u001dx Battery Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

The 11.4V battery powering the hp envy is stored inside the bottom part of your laptop. To access the battery the laptop must be taken apart.

  1. x6t1AgYW5FDhM6Jb

    • Remove the two no-slip covers on the rear, bottom side using spudger shown in top center of picture.

    • The two in the front do not have to be removed as there are no screws underneath them.

  2. KXgdUJC6ZQFRQc5V

    • Remove the two cover tabs towards center of the bottom as there are screws underneath them.

  3. jAl611S1JTgQAZwn

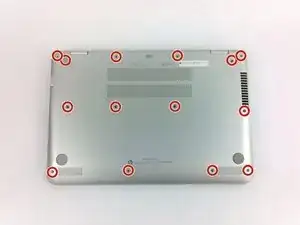

    • Remove all fourteen 4.5 mm screws from the bottom using a Phillips #0 screwdriver. Each location is marked by a red circle in the picture.

  4. NA4jMY2Vwxn5saPe

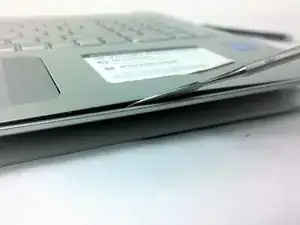

    • Separate the top cover by using a spudger to go around the sides freeing the inside latches.

    • Once the bottom is free, carefully open to the inside as there are two ribbons that connect your keyboard and touch pad to the top cover.

  5. G1BoRJKpyDMMLBkq
    G1BoRJKpyDMMLBkq
    dnYsBQQfxQt6glFK

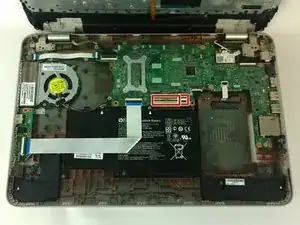

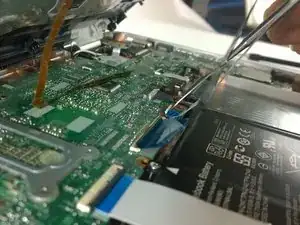

    • Use the spudger to detach the two ribbons from their connectors.

    • The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.

  6. LN5VjPTJ42TAKq1s
    LN5VjPTJ42TAKq1s
    eAVfDQrOnjUvpZtA
    LWbeUXUlZjdXiSRE

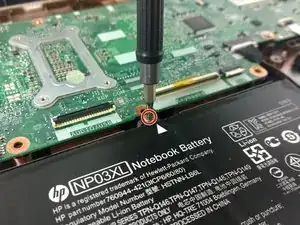

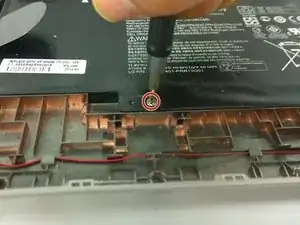

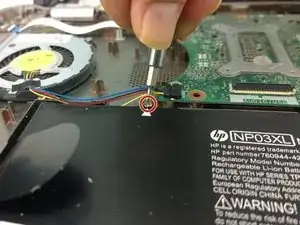

    • Remove the three 3 mm screws from the battery using Phillips #0 screwdriver.

  7. CtJUOcuPwrFxb3dF

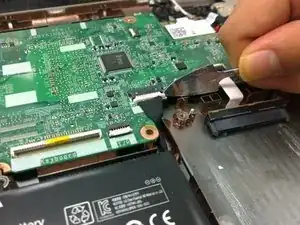

    • Use a spudger to gently detach the battery connector.

    • The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.

Conclusion

To reassemble your device, follow these instructions in reverse order.
