HP Envy 17-3070NR Subwoofer Replacement

Written By: Abby Lentz
  • Comments: 0
HP Envy 17-3070NR Subwoofer Replacement

Difficulty

Easy

Steps

3

Time Required

No estimate

Introduction

The subwoofer gives this laptop a much deeper sound compared to other ones. This guide will show you how to replace it, should the original fail in your HP Envy 17-3070NR.

  1. QsKnyogwUQGXdFyg
    QsKnyogwUQGXdFyg
    dPwl4kaZAZU4De4v

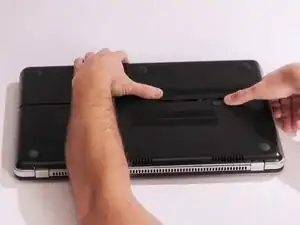

    • Before you begin taking apart the computer, make sure that it is completely powered off.

    • Slide the release latch away from the nearest edge.

    • Slide the back cover off of the computer.

  2. gQSHeYHLaYFvUdQv
    gQSHeYHLaYFvUdQv
    RENSYWZJDLAURVpG
    k5OB56NDZhjJNcBV

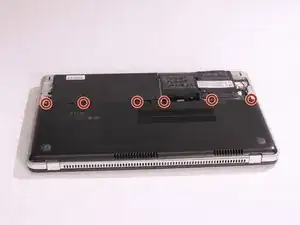

    • Remove the six 3.7mm Phillips screws.

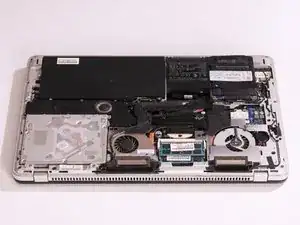

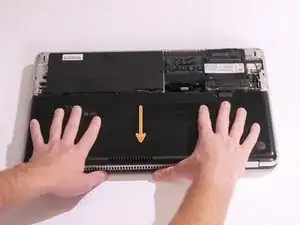

    • Slide the back cover until it clicks, then lift it straight off.

  3. gTmJGeZAarFk4JEN
    gTmJGeZAarFk4JEN
    ydILYCS4MQSYPwXj
    gQnLYdDrM1bmCAq3

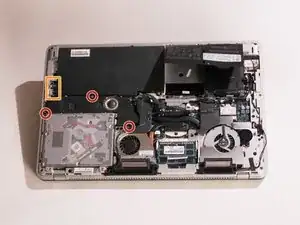

    • Unscrew the three 6.5mm Phillips shoulder screws that connect the subwoofer to the computer.

    • Disconnect the red and black subwoofer cable from the system board by pulling it upwards.

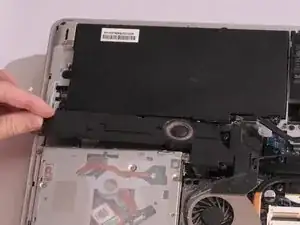

    • Remove the subwoofer by pulling straight up from the main assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
