HP Envy TouchSmart 15 CMOS Battery Replacement

Written By: Robert Patterson
  • Comments: 0
HP Envy TouchSmart 15 CMOS Battery Replacement

Difficulty

Easy

Steps

7

Time Required

5 - 10 minutes

Introduction

Upon boot up, the computer may read a “CMOS checksum error,” or date and time keep getting reset. If this is the error you are receiving you should replace your CMOS Battery.

  1. XnaKobXZhTP2uhKv

    • Press the battery release tab and the battery will pop up.

  2. mFfrlySBpBmKRUfX

    • Remove the battery from the laptop, it will come out easily.

  3. eWgyA6JxEWbReXu6
    eWgyA6JxEWbReXu6
    OdkSRIJVSZ1Jrd5P

    • Remove the single screw holding the accessory plate. This is a PH0 2.0x2.5 screw.

  4. UthonsRSXpVxGeLq
    UthonsRSXpVxGeLq
    eZDUKjfmqJgka4HW
    IiS23lEg5tTYtWnT

    • Pry the accessory plate up from the back of the laptop by applying force upwards where the screw was removed.

  5. UWjlMgLNndO5pNsS
    UWjlMgLNndO5pNsS
    WmHp1yOfHilv62rN
    vcNCiJOfWpbWXTqe

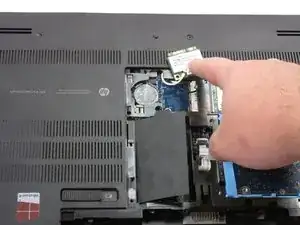

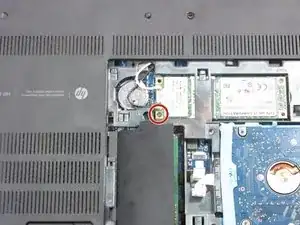

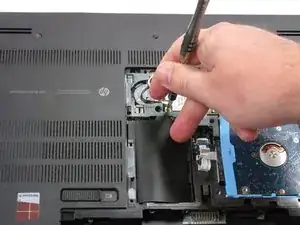

    • Remove the screw from the wireless adapter with a PH0 screwdriver then move the adapter out of the way to access the CMOS battery.

  6. 6ugZ5UaUTdrEQ23J

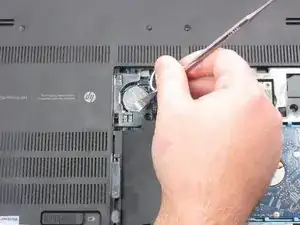

    • Use a plastic or metal spudger to release the CMOS battery from the clips.

  7. SDFRkZsAC45MIcIR
    SDFRkZsAC45MIcIR
    6W1LaLm4rXCXbHOO

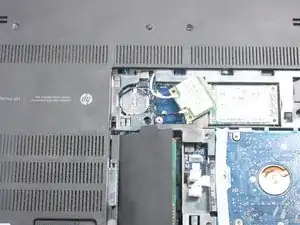

    • Remove the battery from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
