HP Envy TouchSmart 4-1215dx Headphone Jack Replacement

Written By: Gabriel Castro
  • Comments: 0
HP Envy TouchSmart 4-1215dx Headphone Jack Replacement

Difficulty

Moderate

Steps

6

Time Required

7 minutes

Introduction

This guide will show you how to replace the headphone jack for the HP Envy TouchSmart 4-1216dx. Before removing the jack, the Back Panel and Fan of the device must be removed.

  1. 2PRHsYfrcIbC6rdV
    2PRHsYfrcIbC6rdV
    LCvWLEQWyJOHBSLd

    • Remove the thirteen Phillips #0 screws.

  2. 5nGJJcmMEp5sWaPk
    5nGJJcmMEp5sWaPk
    2TBqeqjlaTGuParW

    • Pull the panel up and off to remove from the laptop.

  3. LyuLCOjS3RATJhQO

    • Unplug the fan from the motherboard.

  4. mlfRydPmKuuge6Wq
    mlfRydPmKuuge6Wq
    ItBRFkFUDjtwUs2X

    • Remove the four Phillips #0 screws holding in the fan.

    • Pull out the fan.

  5. hxblvBOWDrJJyliQ

    • Unplug bus from motherboard

  6. sENX2ljld2Np226H

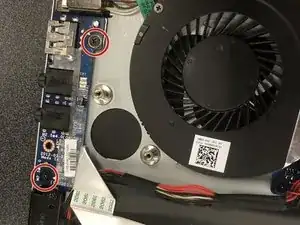

    • Remove the two Phillips #0 screws that hold the headphone jack to the laptop.

    • Pull out to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
