Introduction
If your HP Envy x360 m Convertible (Model 15m-cn0012dx) isn’t reading SD cards, use this guide to replace the SD card motherboard.
A faulty SD card reader will not even recognize that there is a card in the slot. It will not show up on the computer desktop screen.
Before starting, make sure all external connections are unplugged and the computer is turned off.
Tools
-

                  -

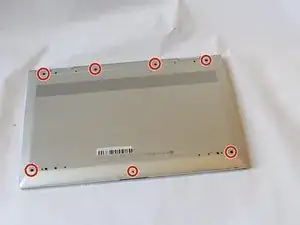

            Set the laptop face down.
-

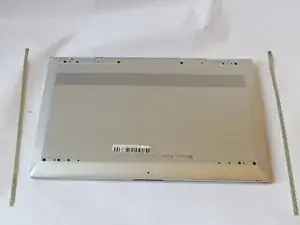

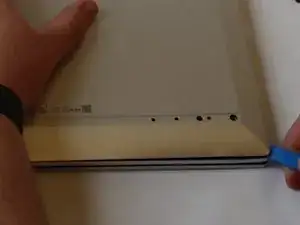

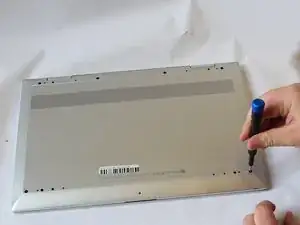

            Peel back the grey screw guards, along the top and bottom edge of the back case. It may be helpful to use a spudger to get started.

-

-

                  -

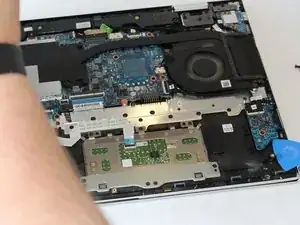

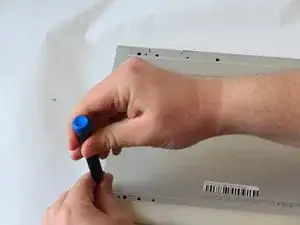

            Pry open the back cover using the iFixit Opening Tool.
-
            While using the tool, place a pick at each corner of the computer (be careful and do it slowly).
-

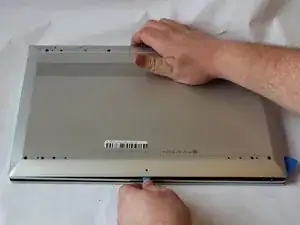

            Once all the corners are slightly lifted, carefully pop off the back cover.

-

-

                  -

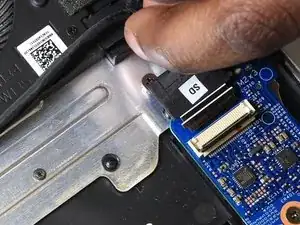

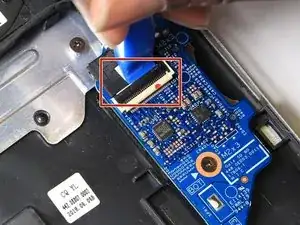

            Use the iFixit opening tool to unlatch the ZIF connector with the cable labelled 'SD' from the daughterboard.
-
            Slide out the interconnect ribbon cable.

-

-

                  -

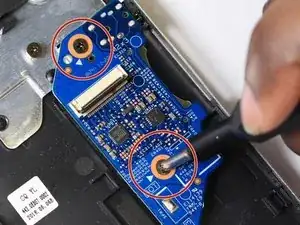

            Using a Phillips #0 screwdriver, remove the two 4mm screws on holding down the SD card daughterboard.
-

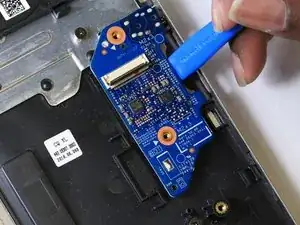

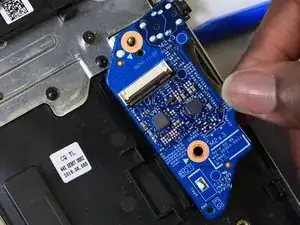

            Remove the SD card daughterboard.

-

To reassemble your device, follow these instructions in reverse order.
