HP Envy x360 m6-aq105dx Hard Drive Replacement

Written By: Cory Smith
  • Comments: 1
HP Envy x360 m6-aq105dx Hard Drive Replacement

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

Hard Drives are responsible for permanently storing and retrieving data on a computer. This guide will instruct how to replace a faulty Hard Drive.

  1. UAOfssMYFBf5Dgj2

    • Ground yourself by touching a metal object or surface. This prevents electrical damage to other components in the laptop.

    • Remove the two 7.8 mm screws using the Phillips #0 screwdriver.

    • Remove the six 5.2 mm screws using the Torx T5 screwdriver.

  2. FfEbPduWgOfG4gPA

    • Light to moderate force is required to remove the back cover.

    • Insert the Jimmy in between the frame of the laptop and the removable back cover and remove the back cover from the device.

    what are the size of m6-aq105dx bottom cover scews

    Ume -

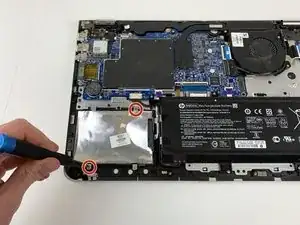

  3. dgoG3LtMCkGyo5sy

    • Attach the grounding bracelet s clip to the frame of the laptop then put on the grounding bracelet.

    • Remove the two 4.6mm screws securing the hard drive in place using the Phillips #0 screwdriver.

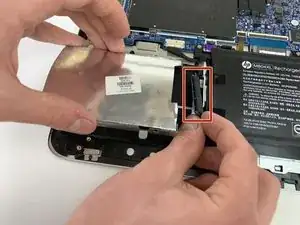

  4. eIMcn3RTRckTDGgX

    • Disconnect the cable plugged into the hard drive and remove the hard drive from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
