HP Envy x360 m6-aq105dx RAM Replacement

Written By: Cory Smith
  • Comments: 1
HP Envy x360 m6-aq105dx RAM Replacement

Difficulty

Moderate

Steps

4

Time Required

15 - 20 minutes

Introduction

RAM stands for Random Access Memory. RAM temporarily stores memory. This guide will instruct on how to replace your computer’s RAM.

  1. UAOfssMYFBf5Dgj2

    • Ground yourself by touching a metal object or surface. This prevents electrical damage to other components in the laptop.

    • Remove the two 7.8 mm screws using the Phillips #0 screwdriver.

    • Remove the six 5.2 mm screws using the Torx T5 screwdriver.

  2. FfEbPduWgOfG4gPA

    • Light to moderate force is required to remove the back cover.

    • Insert the Jimmy in between the frame of the laptop and the removable back cover and remove the back cover from the device.

    what are the size of m6-aq105dx bottom cover scews

    Ume -

  3. DbufdMQRrgp1YVbU

    • Attach the grounding bracelet's clip to the frame of the laptop then put on the grounding bracelet.

    • Lift up the RAM cover panel and remove it from the device.

  4. KyJPuHOpcUn4lyxH
    KyJPuHOpcUn4lyxH
    3OfqRfaKEs1Lgunb

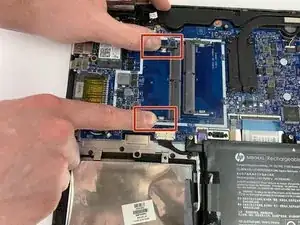

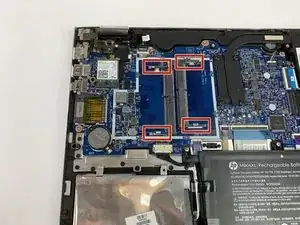

    • Pull away the levers away from each other to disconnect the RAM stick. Repeat this step for any subsequent sticks of RAM.

Conclusion

To reassemble your device, follow these instructions in reverse order.
