Introduction
Make sure that you have a cooling fan with the same voltage/amperage settings to prevent abnormal operation.
-
-
Ground yourself by either touching an unpainted metal surface or by using the Anti-Static wrist strap.
-
Turn off the computer and remove the charger from the charging port.
-
Turn the laptop over and slide the battery release catch to the right. The battery will pop up from its slot. Remove it using your fingers.
-
-
-
Use a Phillips #0 screwdriver to remove the four screws from the indicated cover.
-
Gently lift and remove the cover.
-
-
-
Pry the keyboard off with a spudger. Be careful not to apply too much pressure and damage any components.
-
-
-
Disconnect the clip attaching the keyboard wiring to the motherboard. Lift and remove the keyboard.
-
-
-

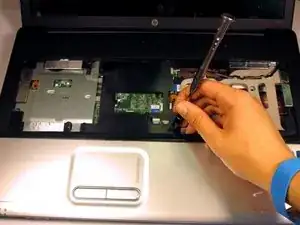

Use a Phillips #0 screwdriver to remove the 6mm screw from the top panel.
-
Gently lift and remove the panel. Use a metal spudger if the it seems set in place.
-
-
-

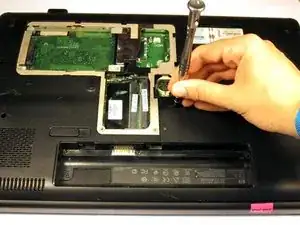

Use a Phillips #0 screwdriver to remove the 6mm screw for the Wi-Fi module cover.
-
Remove the cover.
-
-
-

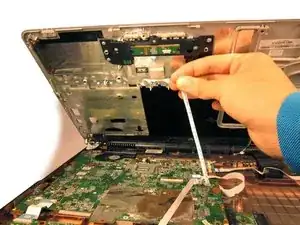

Partially separate the two panels until connectors are visible.
-
Unclip the wires that attach the trackpad module to the motherboard.
-
-
-
Press a metal spudger between the VGA port and the plastic housing to pry up the motherboard.
-
Remove the motherboard and turn it so that the fan is facing upward.
-
-
-

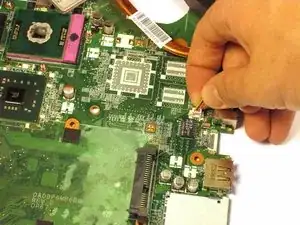

Use a Phillips #0 screwdriver to loosen the three screws attaching the heatsink to the motherboard.
-
Remove the heatsink and fan assembly by unclipping the fan from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
