HP Pavilion 13-s128nr RAM Replacement

Written By: alibappan
  • Comments: 0
HP Pavilion 13-s128nr RAM Replacement

Difficulty

Easy

Steps

11

Time Required

20 minutes

Introduction

  1. HLIUxI6nBWBLv1dC
    HLIUxI6nBWBLv1dC
    POCjV4tTVMY3DKRC

    • Use the iFixit opening tool to take off the rubber caps.

    • Remove the screws using the Phillips #0 screwdriver.

  2. g62kCiMHOGCvbKXy

    • Use the Jimmy to pry around the seam of the laptop.

    • Remove the back panel of the laptop.

    • Don't completely remove the back panel as there are ribbon cables that can be easily damaged if removed quickly.

  3. nSKCjl33rSfUdf1j
    nSKCjl33rSfUdf1j
    qCkLCwqmF1dTKFaI

    • Using the iFixit opening tool to lift the tabs holding in the cables connecting the keyboard to the motherboard.

    • Pull the cable from the motherboard.

  4. oTIBWdfA1BJkBJh3
    oTIBWdfA1BJkBJh3
    1Pg3eABGncQ4DhQZ

    • Lift upwards on the black tabs the purple strip is connected to.

    • Gently pull the purple strip out of its place.

  5. kMrJUPTACKmdLLBp

    • Using the Phillips #0 screwdriver, remove the five screws holding the battery in place.

  6. qWIbGBfmKxQv2mud

    • Pull the white cable connected to the motherboard out using the iFixit opening tool.

  7. qBZyhlOCd43CfK3I

    • Remove the battery.

    • There are little snap tabs on the right side of the battery. Be sure not to break them by pulling the battery out towards the left side.

  8. aNlEXXZqxW3vQoIM

    • Look on previous instruction for how to open the laptop!

    • Remove these cables

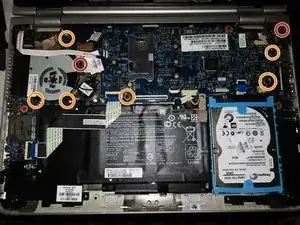

  9. BySY4DunbYxV1KOB

    • First, these two small.

    • Second, these six.

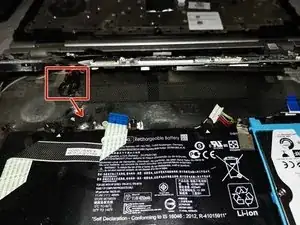

  10. 2drKSZW15lclykfa

    • While fliping the motherboard, lift the CMOS battery from it's place.

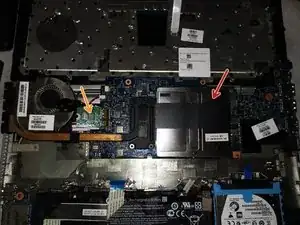

  11. DBZ3FWYOAnyLVON1

    • 2 RAM-slots under this cover

    • M.2 Wi-Fi card

Conclusion

To reassemble your device, follow these instructions in reverse order.
