HP Pavilion 14-b120dx Audio Port/USB Drive Replacement

Written By: Erin Lavalla
  • Comments: 6
HP Pavilion 14-b120dx Audio Port/USB Drive Replacement

Difficulty

Moderate

Steps

10

Time Required

30 minutes

Introduction

This guide will walk you through replacing the audio port and USB drive card using an iFixit PH0 screwdriver and plastic opening tool.

  1. XcNnLNvNoJqZKcW4

    • Power down the laptop and detach the charging cord (failure to do so can result in electrical shock).

  2. vXtigFaWa3eicWXH
    vXtigFaWa3eicWXH
    DSvOKABGHGAnRd3R
    1tmItTJduHVsOhmI

    • Flip the laptop upside down so that the bottom is facing you.

    • Push the slide on the right toward the center of the laptop, releasing the battery latch.

    • Lift the battery up and away from the laptop.

  3. 2kMB1AvVsGT5mDQT
    2kMB1AvVsGT5mDQT
    qKtvvANNO1MCIJgs
    wRNVBeruAaVxsb1X

    • Insert the plastic opening tool between the keyboard and the palm rest.

    • Pry upwards until the keyboard section detaches from the laptop.

    • Repeat this around the edge of the entire keyboard.

    • Sections will make loud snapping noises as they detach from the palm rest - this is normal.

    there are 2 screws on the back that are marked with a mini keyboard. these have to be removed before lifting the keyboard

    John Bollman -

    Insert the opening tool at the back of the keyboard, not the front!

    Philip Le Riche -

  4. aNCrc5yfAjDuoXcC
    aNCrc5yfAjDuoXcC
    I3ZPChg1UqyTtmTt

    • Lift the keyboard slowly up until the connecting cable is exposed.

    • Carefully lift the flap on the ZIF connector using a fingernail or plastic opening tool. This will release the cable.

    • Detach the cable.

    Lift the back of the keyboard, not the front!

    Philip Le Riche -

  5. ovgCEcMaj3hXTfxn
    ovgCEcMaj3hXTfxn
    ExvKwSoPHeZCJUA3

    • Unscrew the 10 6.0 mm screws under the keyboard housing with a Philips #0 head screwdriver.

    2 of these marked locations are the holes for the keyboard screws

    John Bollman -

  6. XoxHBDe1Vu16RV6A
    XoxHBDe1Vu16RV6A
    cJukWtMBo4pjwSpV
    KKBgLjVNsoxBpPXF

    • Insert the plastic opening tool into the seam between the palm rest and the laptop.

    • Pry upwards until the palm rest separates from the laptop.

    • Repeat this process around the entire computer.

    • These steps will be similar to the ones you took to remove the keyboard. Again, you will hear snapping noises.

  7. UOCffdOWVsJJaOEC

    • Lift upwards to remove the palm rest.

  8. PjP6kZZAmQvm24La
    PjP6kZZAmQvm24La
    KFmGlJ3N5lBLZQLy

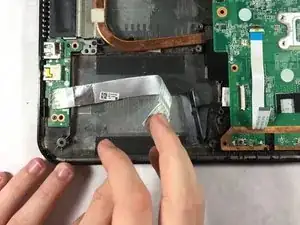

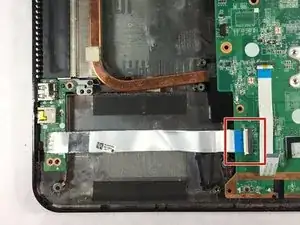

    • Carefully disconnect the cable connecting the ports to the motherboard from the right side.

  9. r3TVFLL1WySvinA1
    r3TVFLL1WySvinA1
    sBXXQ3XkIDSaWgOc
    QktMjG1UJvnrWaPX

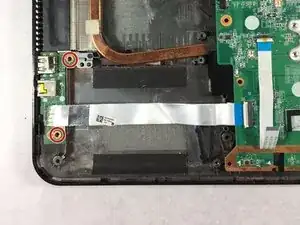

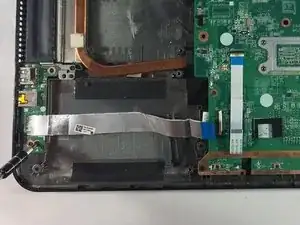

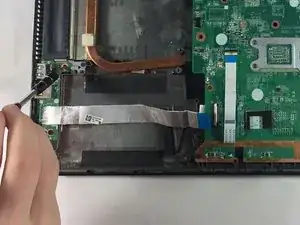

    • Remove the two 6.0 mm screws from the ports.

  10. BQ3OQt2CNMrYRgNZ
    BQ3OQt2CNMrYRgNZ
    Z1smcA6HtoQUbsS4

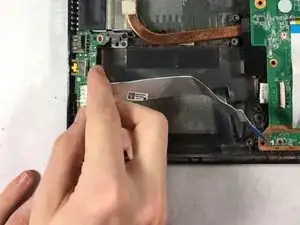

    • Push the ports to the left and lift upward to remove them safely.

Conclusion

To reassemble your device, follow these instructions in reverse order.
